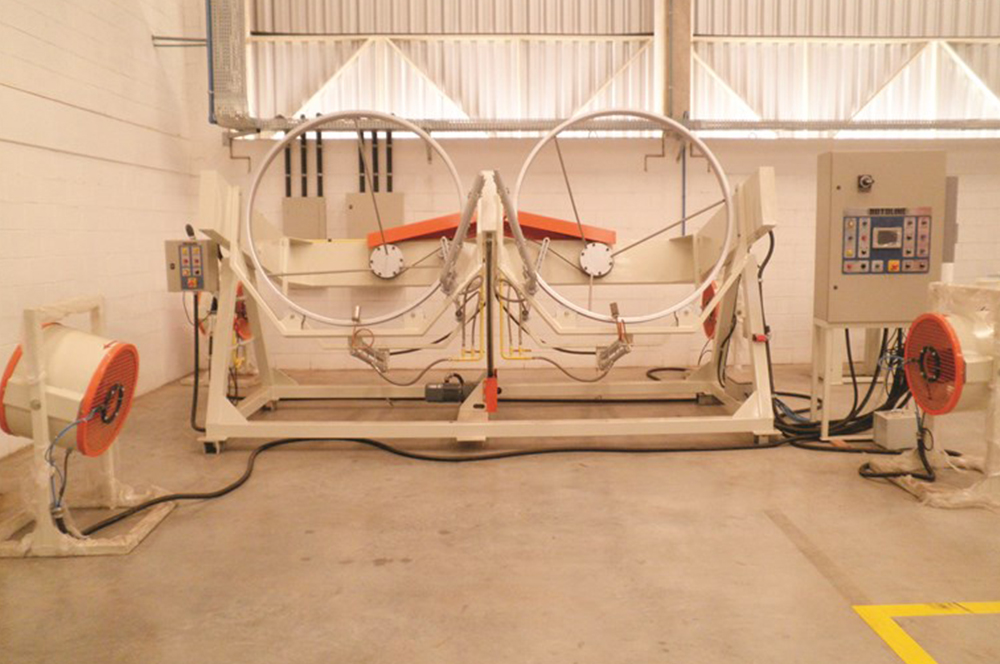

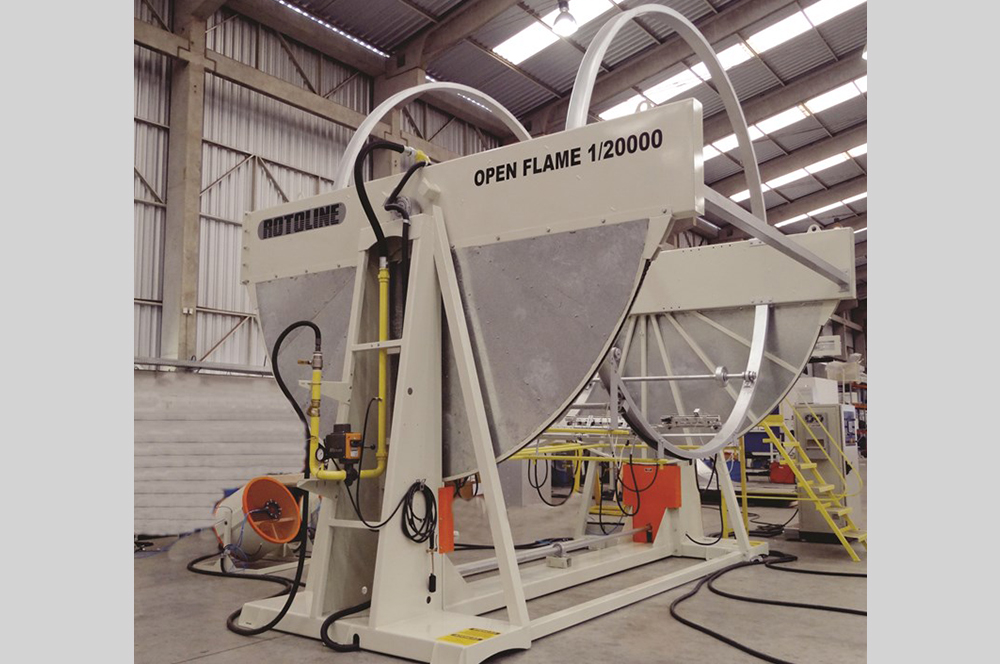

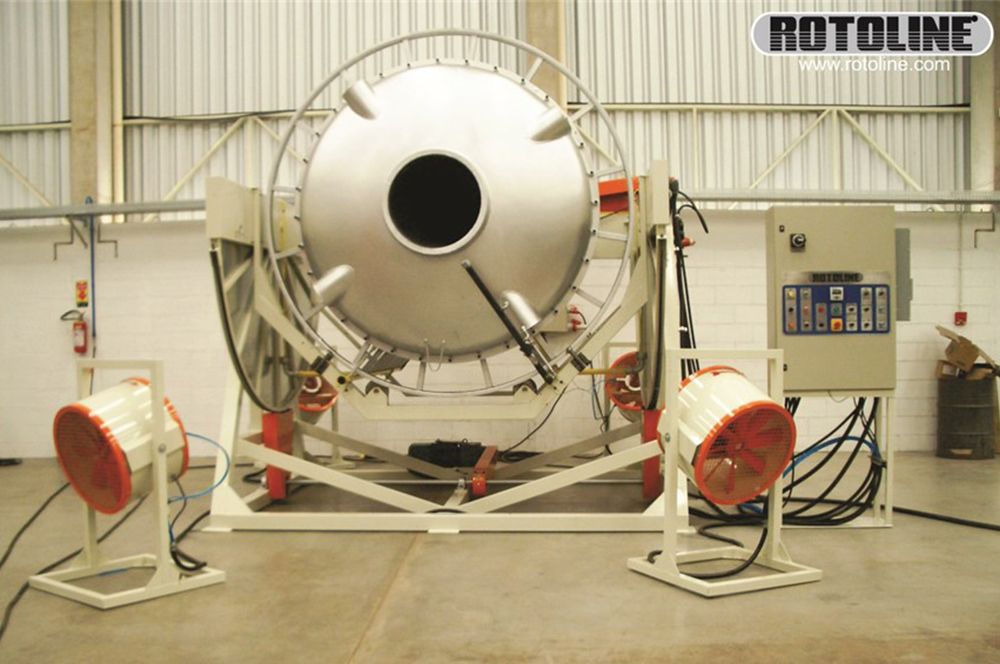

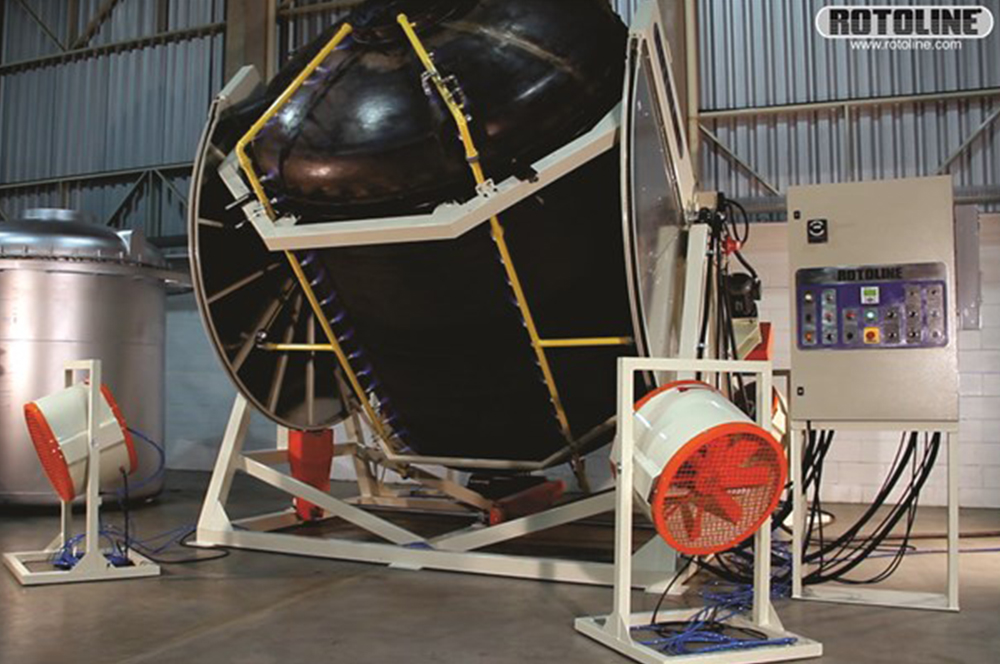

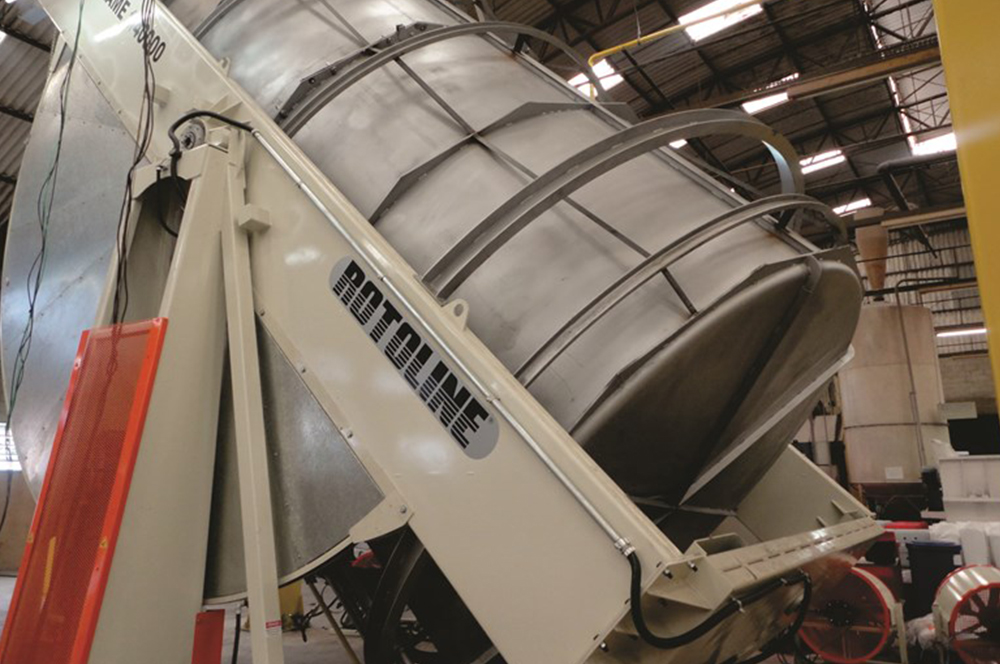

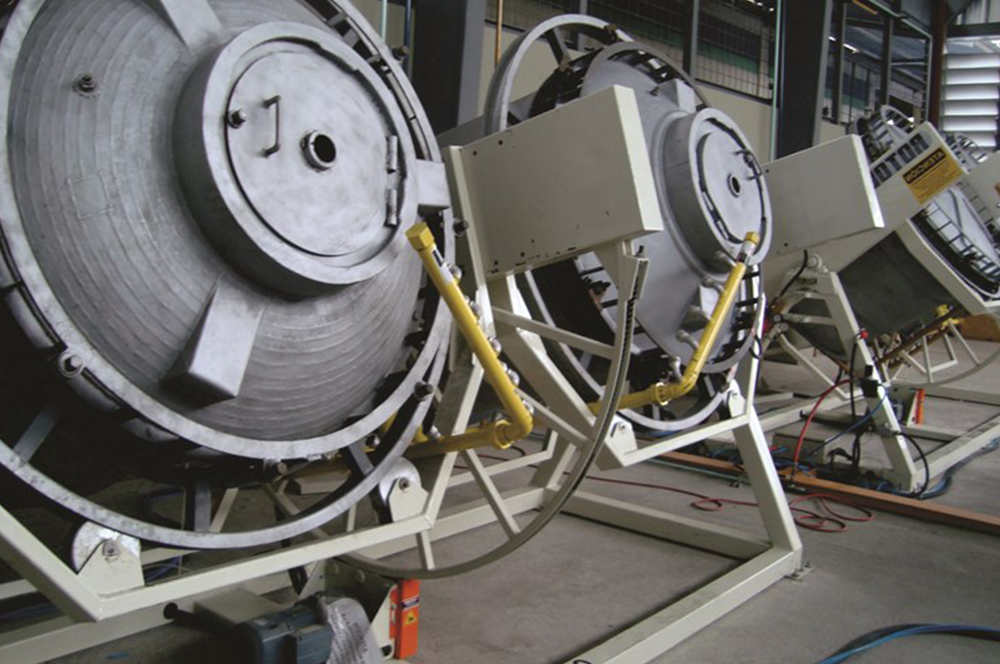

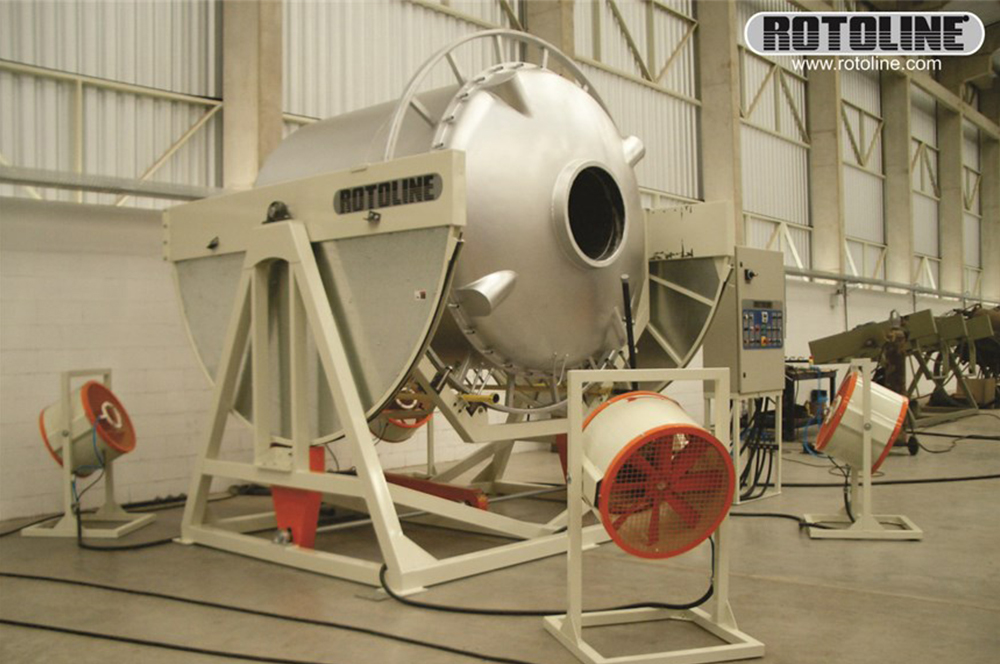

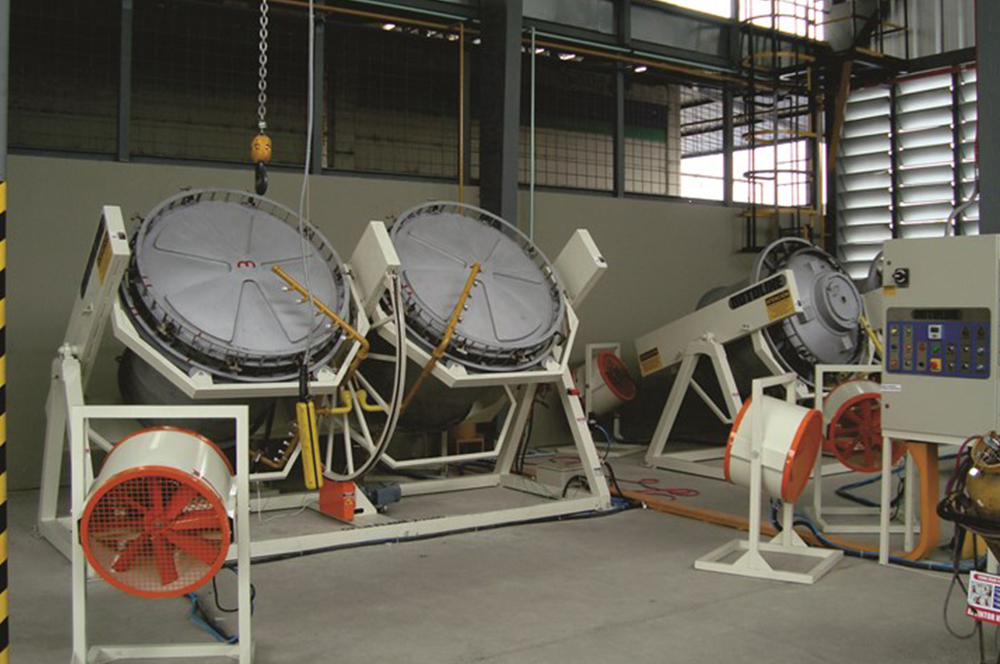

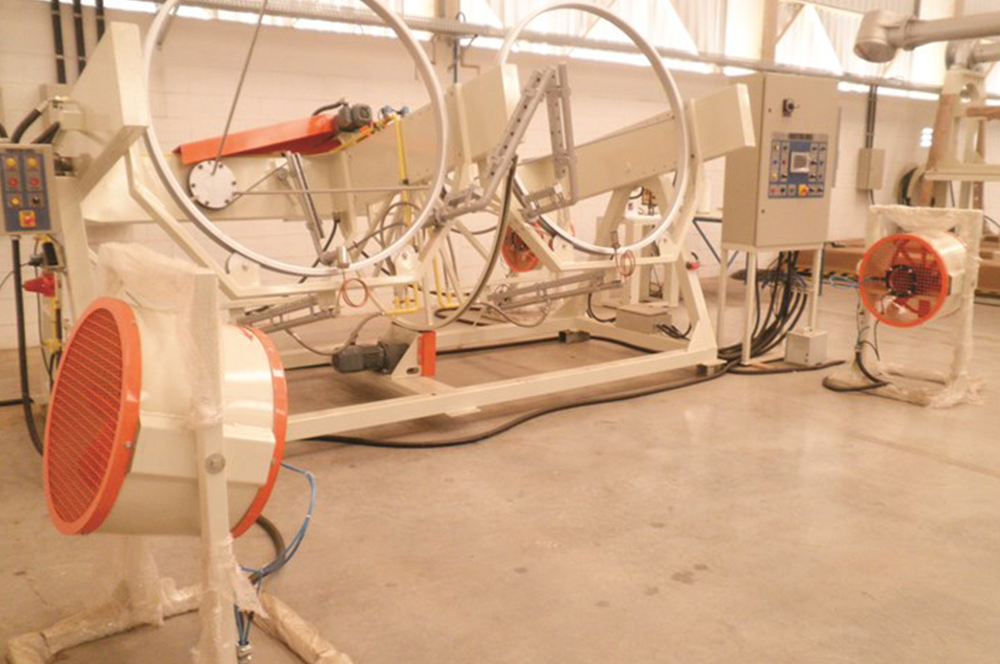

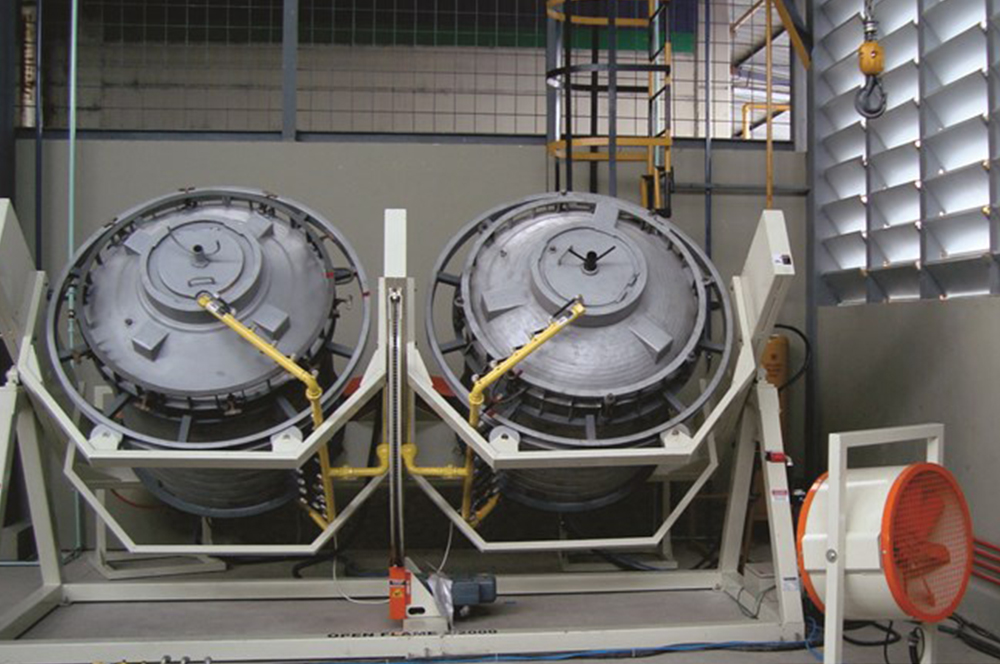

Open Flame Machines are indicated particularly for the production of cylindrical parts (tanks, etc.), whose distance between the burners and the mold can be closer, but also constant, which provides economy and viability in terms of gas consumption. With Open Flame machines, some accessories can be added, such as, the gas flow meter. It works integrated with the machine's control software, providing gas consumption records by cycle, by number of parts produced and by weight of material processed.

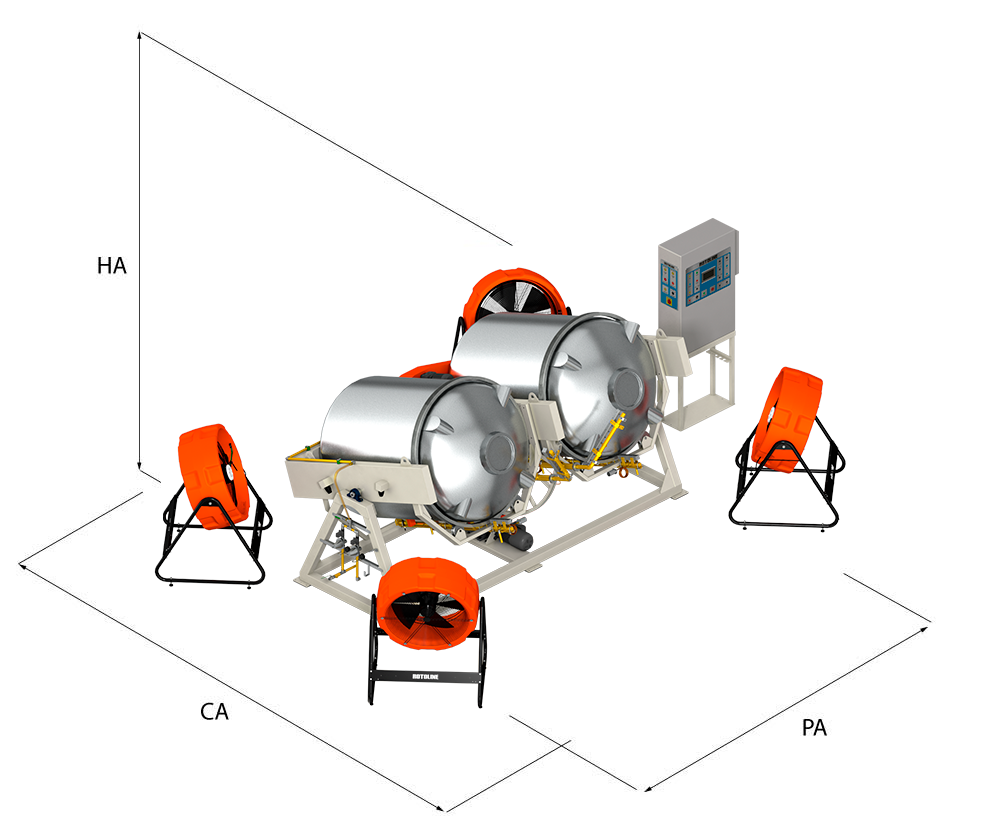

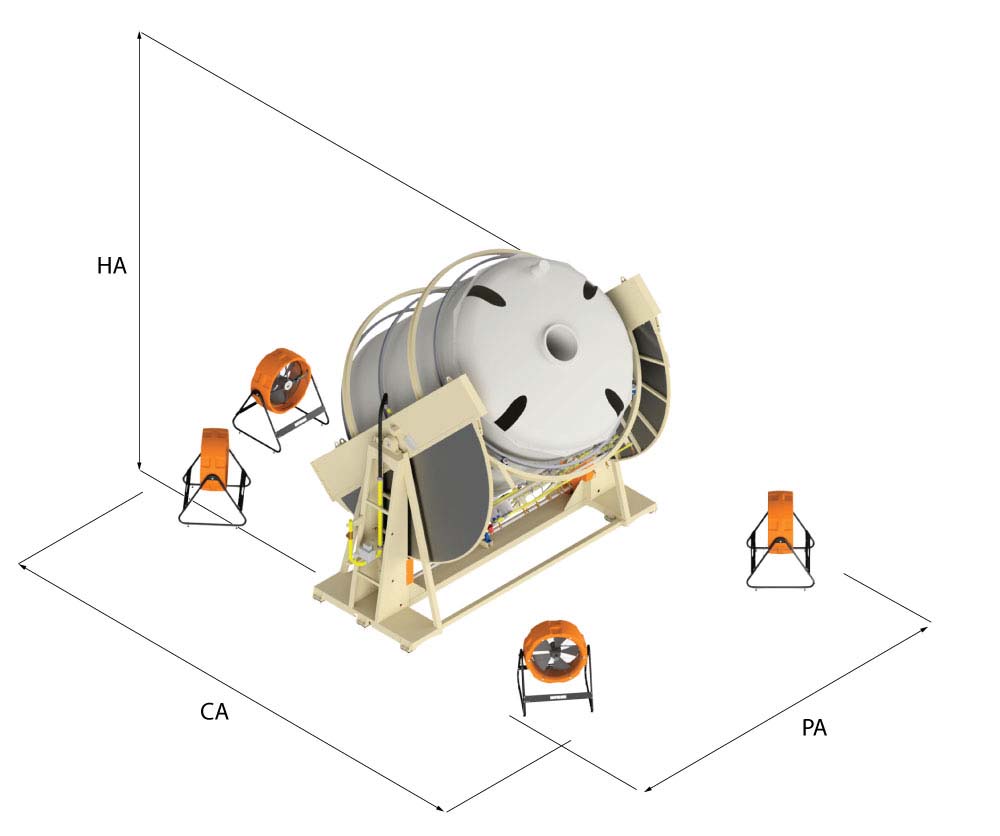

MACHINE
DIMENSIONS
1/2.000
HA
2600 mm
103 in
CA
4500 mm
178 in
PA
4000 mm
158 in
Ø OVEN
1400 mm
56 in
* Measurements are approximate and may be adjusted by the manufacturer.
* CHECK THE AVAILABILITY FOR YOUR AREA.
MOLD LIMITS
Ø 1400 mm
55 in
1800 mm
71 in

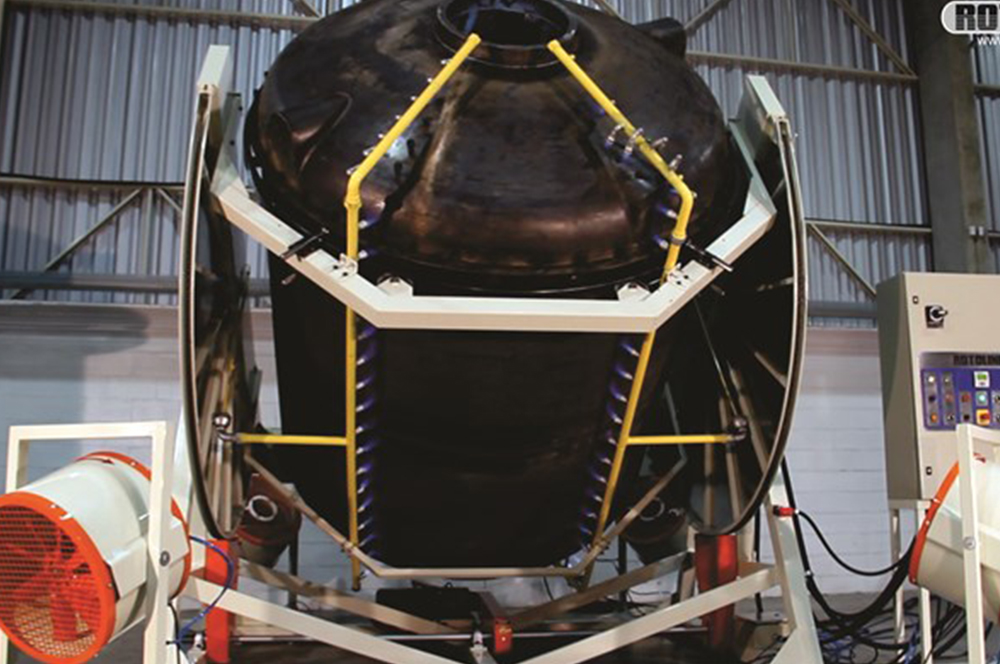

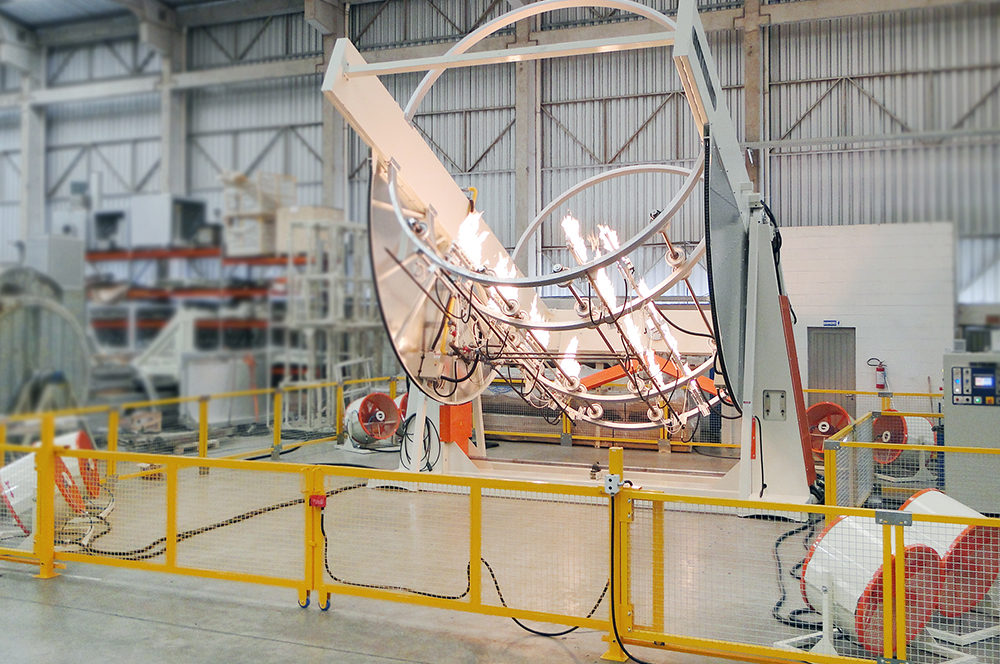

The burning nozzles are easily replaced and/or relocated. It offers more efficiency on heat distribution, which results in an excellent performance as well as reduced gas consumption.

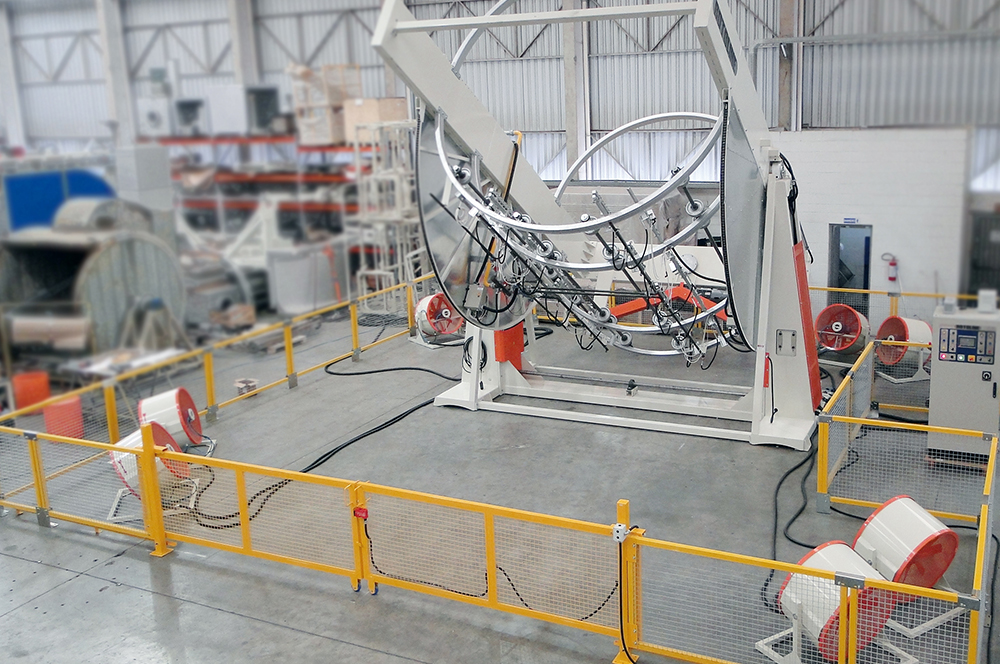

Interlocked safety system, which extends the range of flame lighting security. This model has greater and better stability in the swing movements (rock) and rotation (roll), driven by variable frequency drives which controls the gearmotors, allows soft starts and stops by the pre-programmed deceleration and acceleration ramps.
Conta com um sistema de intertravamento que amplia a faixa de segurança de acendimento da chama. Os bicos de queima são de fácil reposição e/ou realocação para maior eficiência na distribuição do calor, o que resulta em uma excelente performance além de proporcionar reduzido consumo de gás.

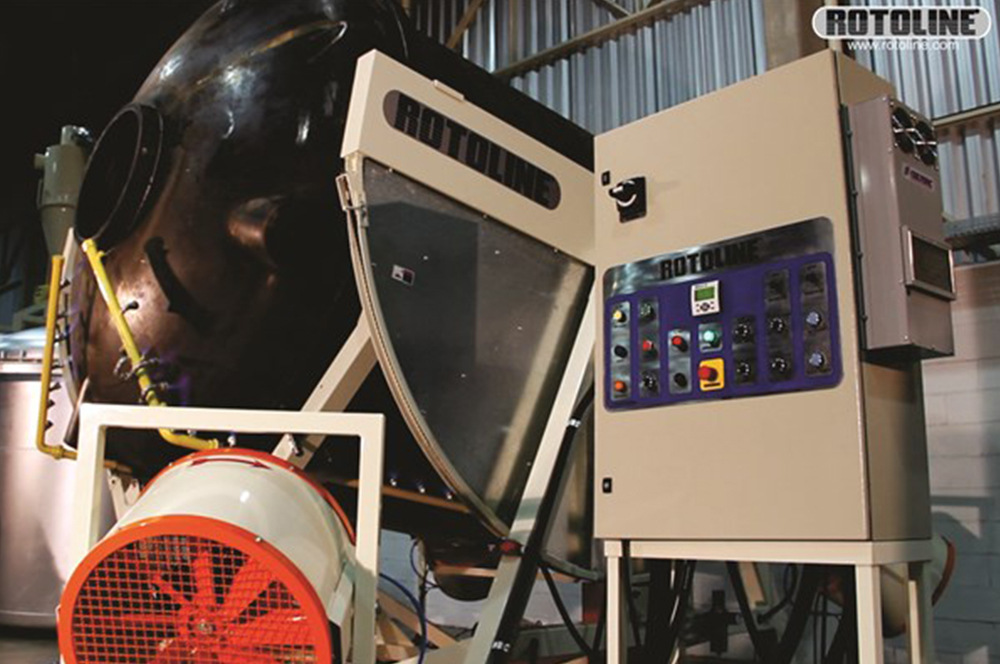

Programmable Logic Controller (PLC) controlled process and HMI color graphic monitored that allows programming times and speed of swing (rock) and rotation (roll) as well as visualization and iteration with the process in an easy and friendly way.
See below a small sample of the variety of products that can be manufactured by the rotational molding process.
Reading Time: 12 minutes
Plastic rotational molding is one of the most important techniques for developing products in this material. If you are looking for a practical guide to understand and achieve the best results in plastic rotational molding, you are in the right place.
Reading Time: 4 minutes
See how to choose the right rotational shaping machine for your business and check out the rotational molding machine options that Rotoline has available for you.
Reading Time: 3 minutes
Rotoline is responsible for the manufacturing and technical support of innovative and revolutionary rotational molding machines for the plastics market.
Reading Time: 4 minutes
Some basic care and of fast execution show the extreme importance of control, detection, and troubleshooting in the rotomoulding machines. After all, the cost of scheduled maintenance is exponentially smaller than the cost of unscheduled maintenance.
Rotoline is a global supplier of Rotational Molding Machines with one of the highest quality standards. Currently, it has machines installed on 5 continents.
MACHINES
ROTOLINE BRASIL
ROTOLINE USA
ROTOLINE EUROPE

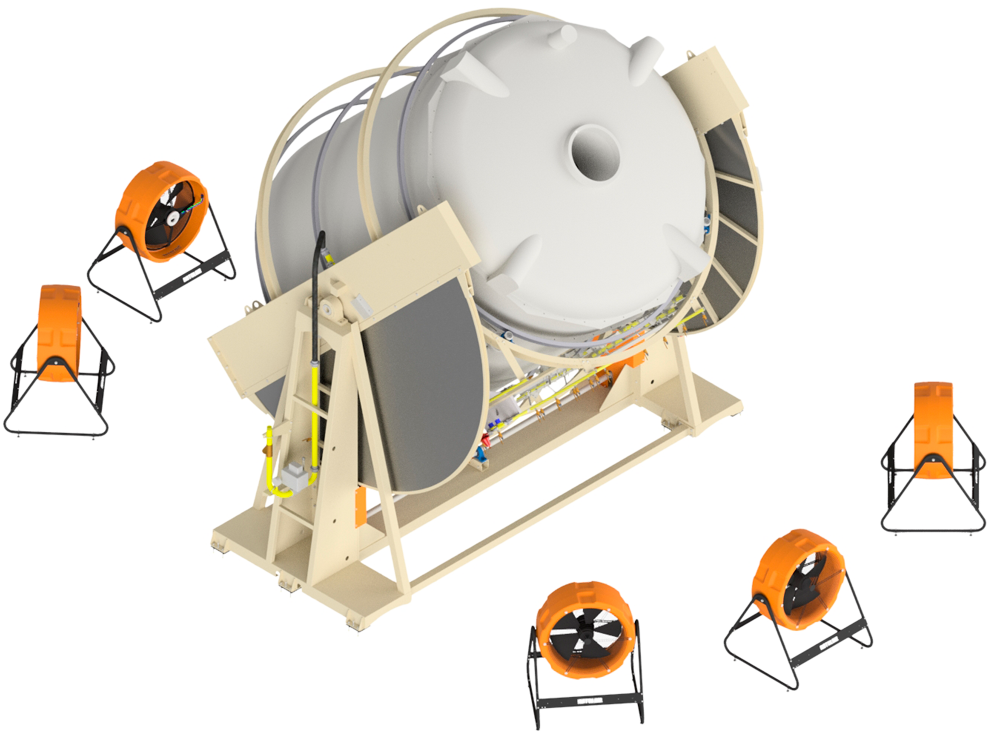

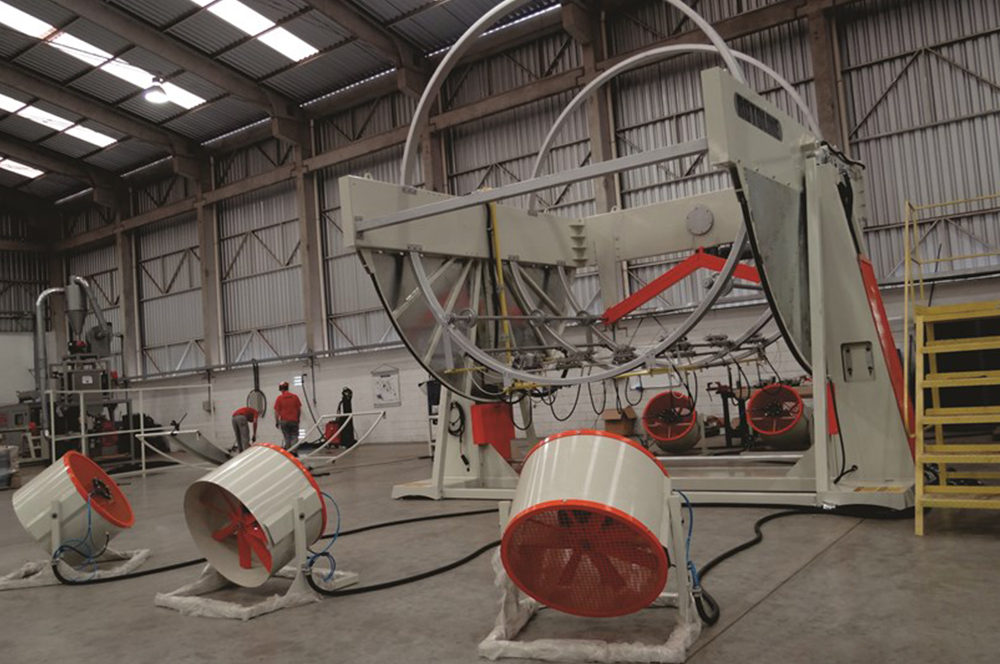

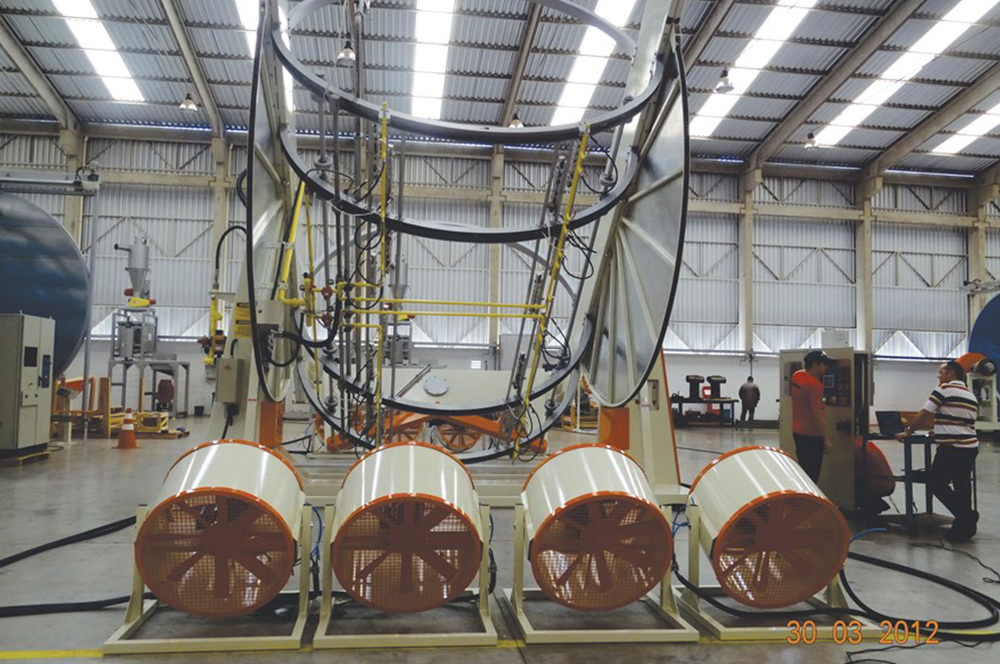

The Cooling System is composed by fans with high performance propellers with large flow rate and low noise levels.
They are equipped with spray nozzles ring system programmable in the recipe, the "Air Assist" uses water + compressed air.
