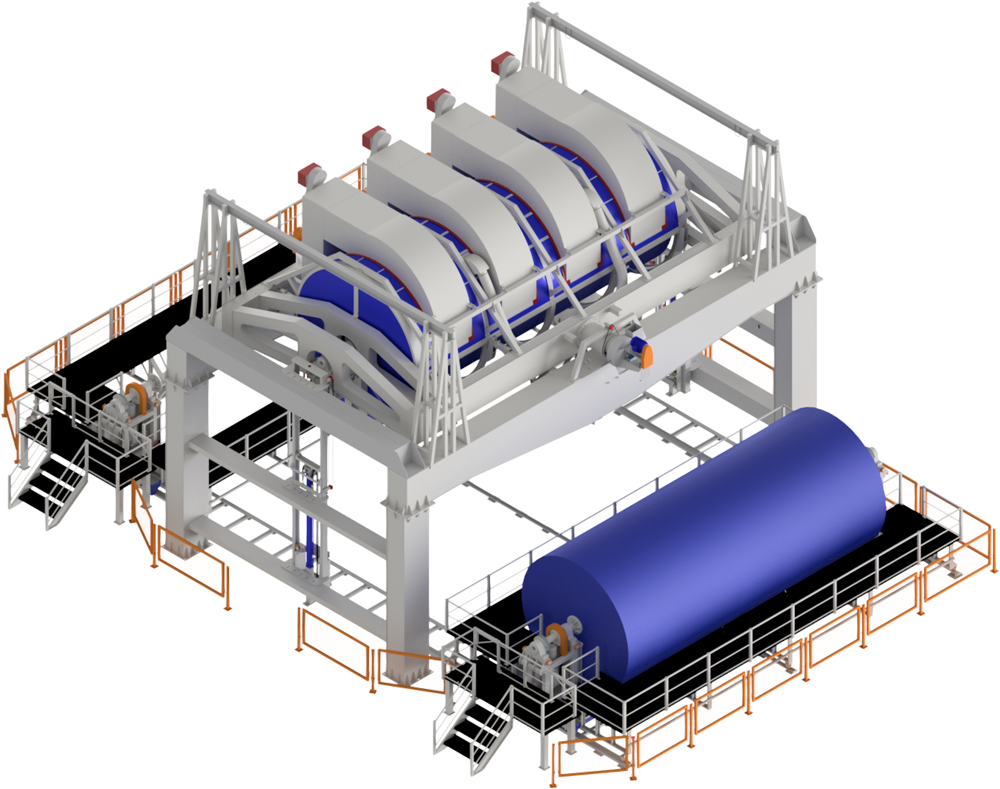

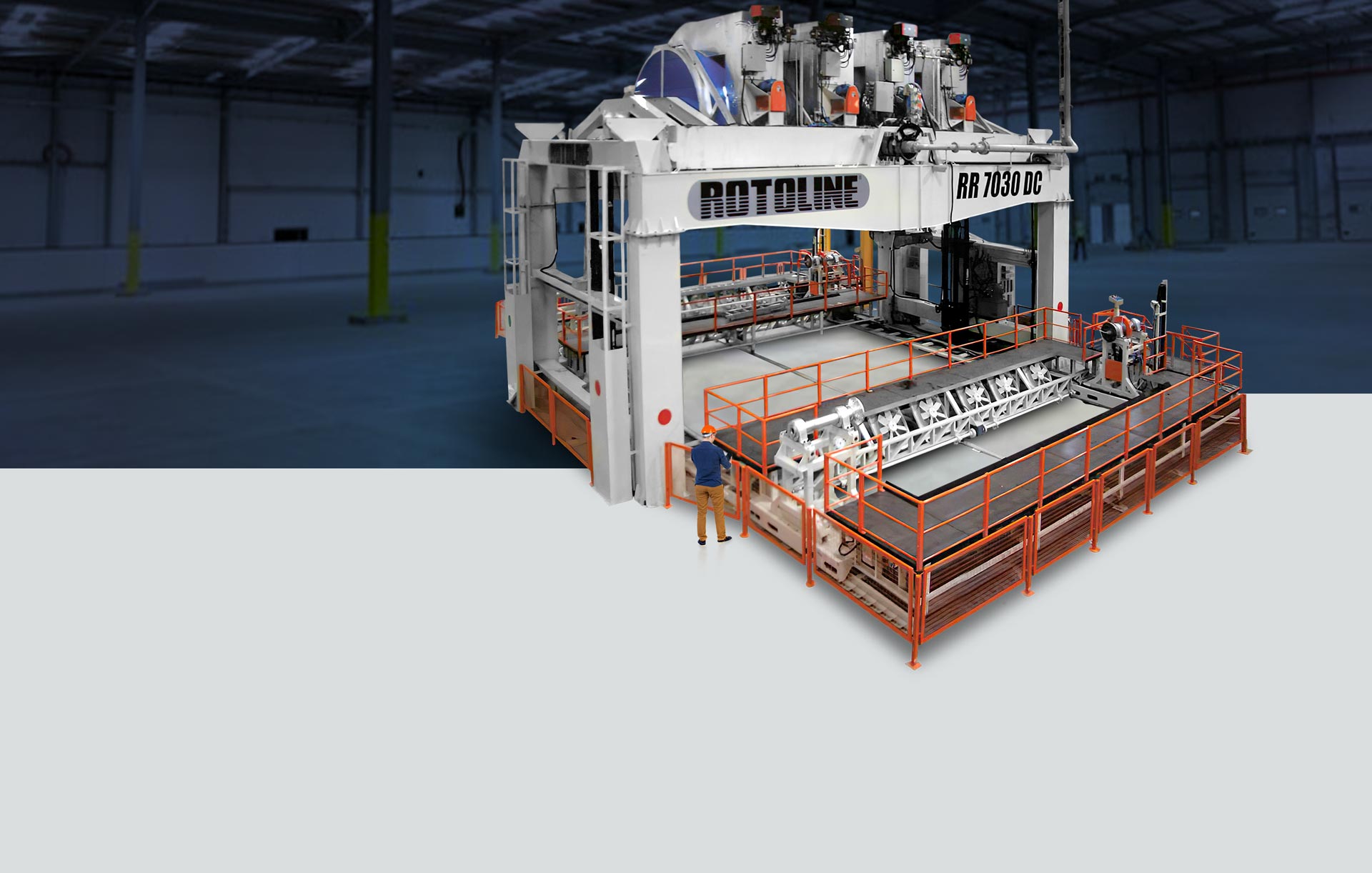

The RR7030DC Machine has outstanding quality and unrivalled technology, this machine was developed to meet the demand of the rotomolders that make large size. The central oven has a capacity for 7 meters long by 3 meters in diameter molds, making it possible the production of large tanks, boats and etc.

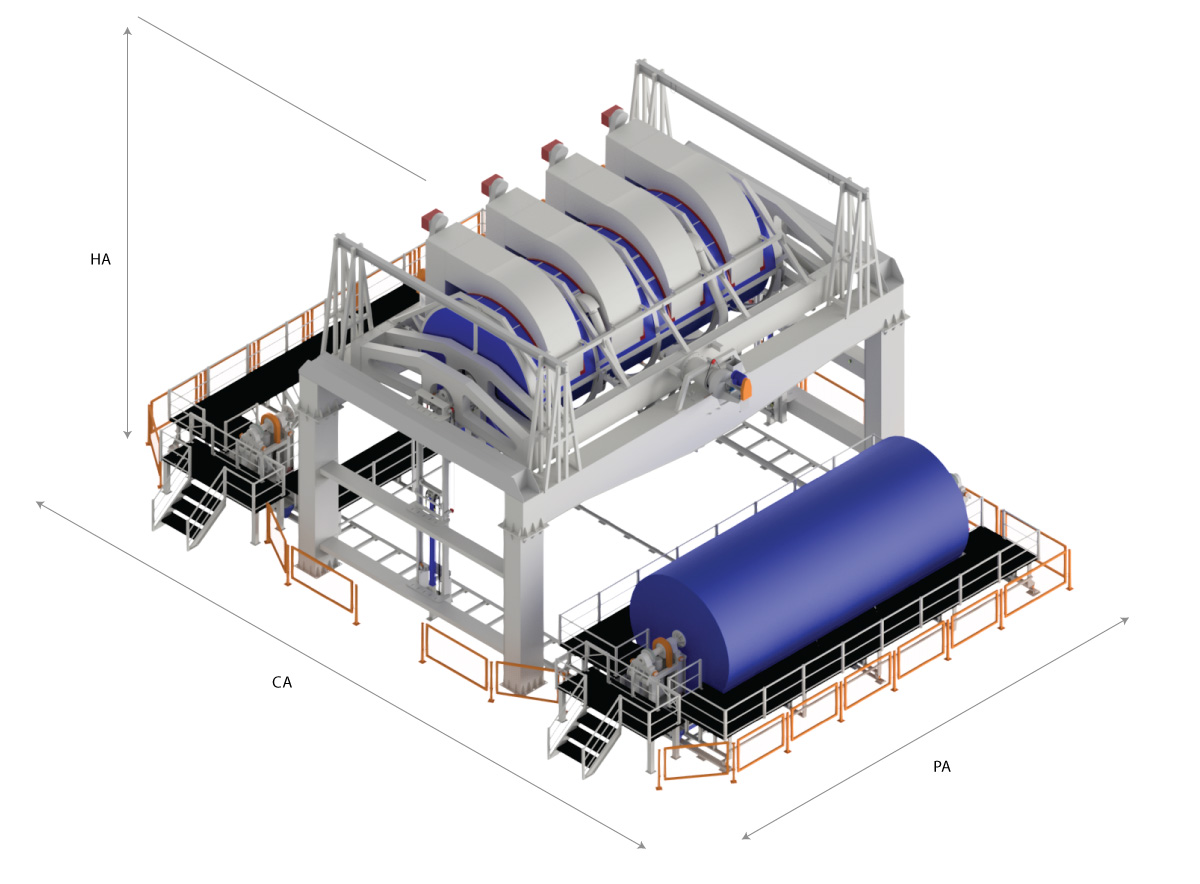

DIMENSIONS
RR 7030 DC
HA
9450 mm
372 in
CA
17800 mm
700 in
PA
13200 mm
520 in
Ø OVEN
3000 mm
118 in
* Measurements are approximate and may be adjusted by the manufacturer.
3000 mm
118 in
7215 mm
284 in

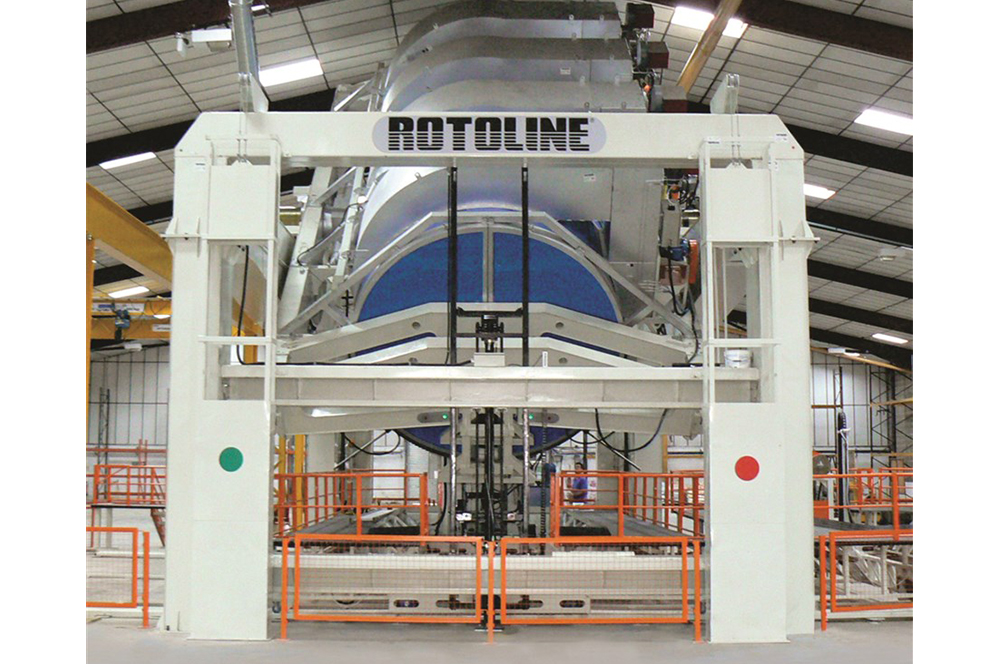

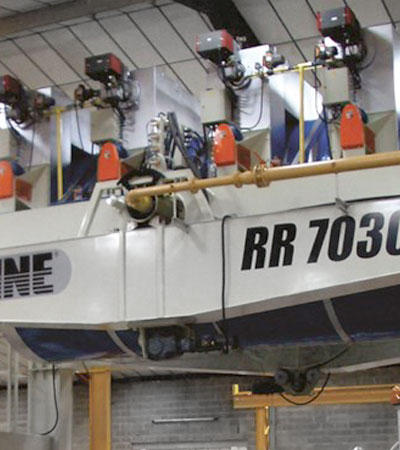

The central oven has a capacity for 7 meters long by 3 meters in diameter molds, making it possible the production of large tanks, boats and etc.

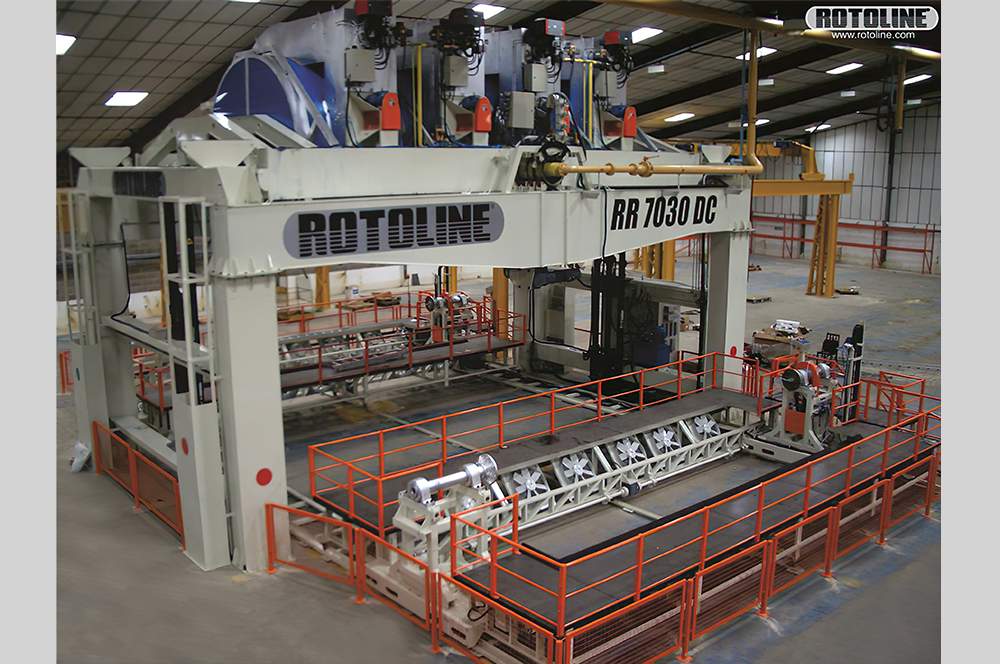

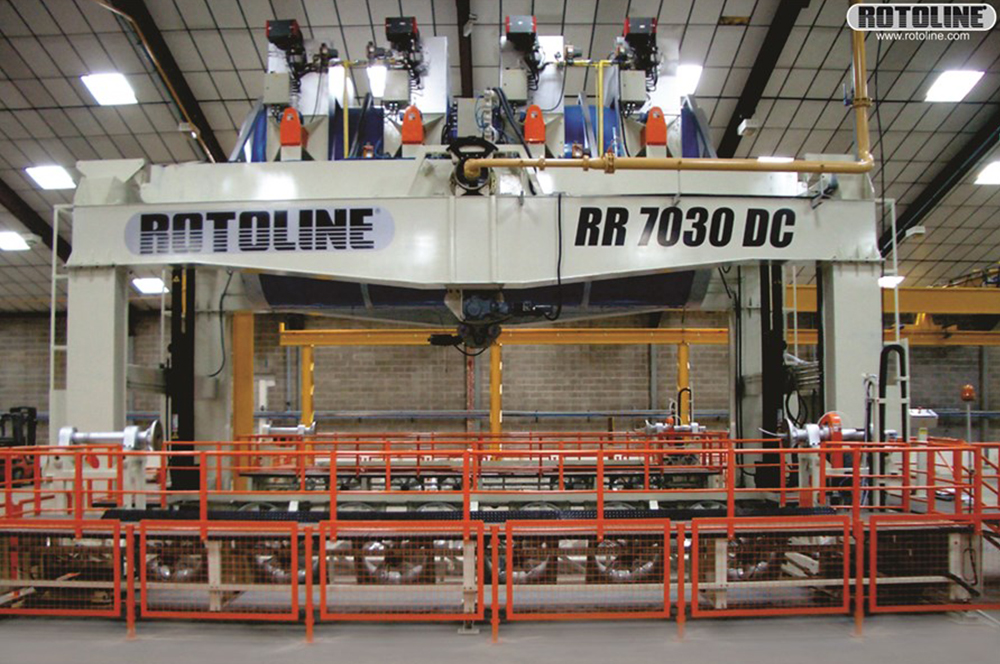

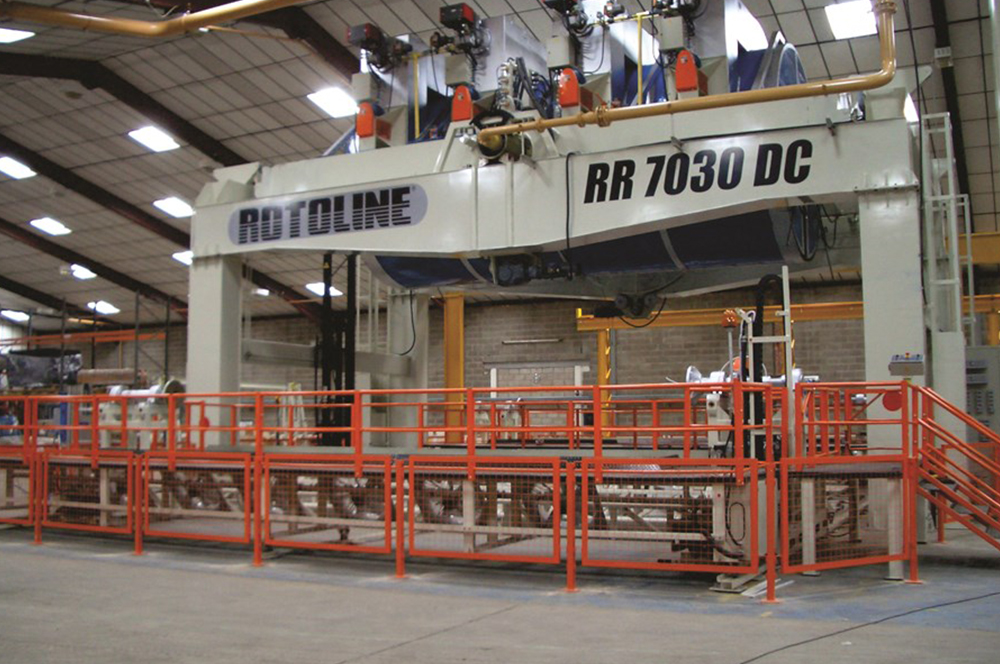

Other highlights of RR7030DC are the cooling mold loading and unloading stations and platforms , which enables a continue production flow and vastly productivity and economy, with the advantage of changing molds easily and having the option of working with one or two stations.
The hydraulic and electric systems are specially designed for the RR7030DC, what guarantees precise and smooth oven movements.
It is composed by a Programmable Logic Controller (PLC) that contains the System Manager RRDC/2.20, a set of sensors/transducers, a specific controller for gas flaring, and actuators.
See below a small sample of the variety of products that can be manufactured by the rotational molding process.
Reading Time: 12 minutes
Plastic rotational molding is one of the most important techniques for developing products in this material. If you are looking for a practical guide to understand and achieve the best results in plastic rotational molding, you are in the right place.
Reading Time: 4 minutes
See how to choose the right rotational shaping machine for your business and check out the rotational molding machine options that Rotoline has available for you.
Reading Time: 3 minutes
Rotoline is responsible for the manufacturing and technical support of innovative and revolutionary rotational molding machines for the plastics market.
Reading Time: 4 minutes
Some basic care and of fast execution show the extreme importance of control, detection, and troubleshooting in the rotomoulding machines. After all, the cost of scheduled maintenance is exponentially smaller than the cost of unscheduled maintenance.
Rotoline is a global supplier of Rotational Molding Machines with one of the highest quality standards. Currently, it has machines installed on 5 continents.
MACHINES
ROTOLINE BRASIL
ROTOLINE USA
ROTOLINE EUROPE

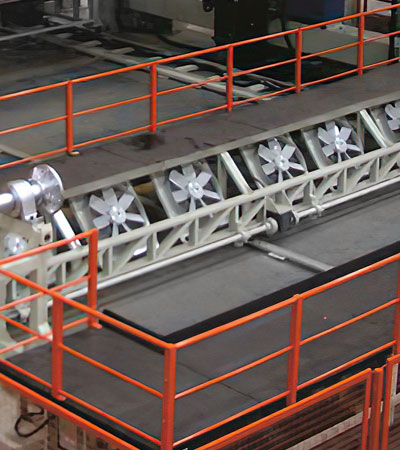

The Cooling System is composed by fans with high performance propellers with large flow rate and low noise levels.
They are equipped with spray nozzles ring system programmable in the recipe, the "Air Assist" uses water + compressed air.
