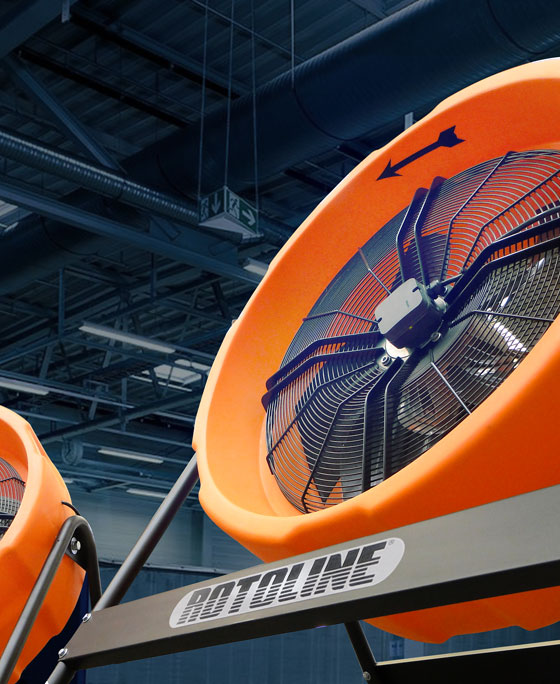

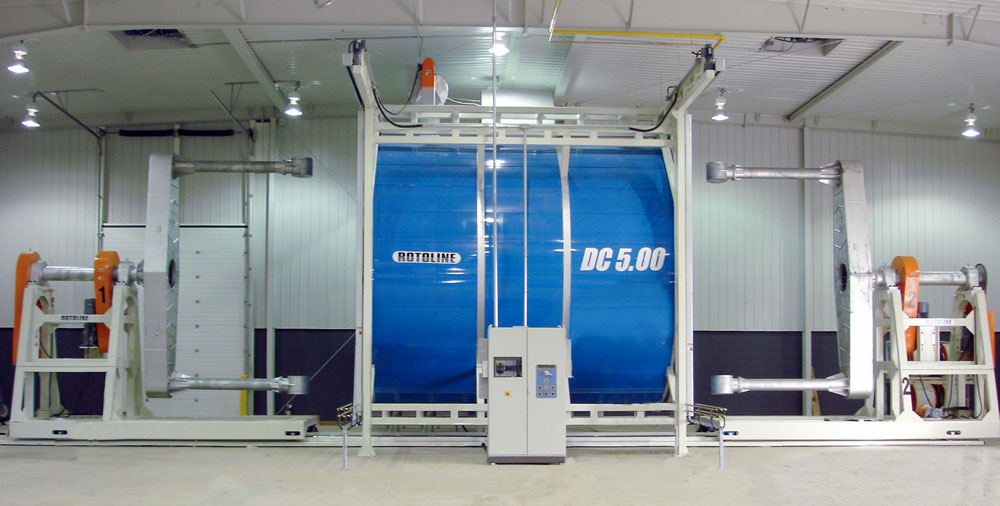

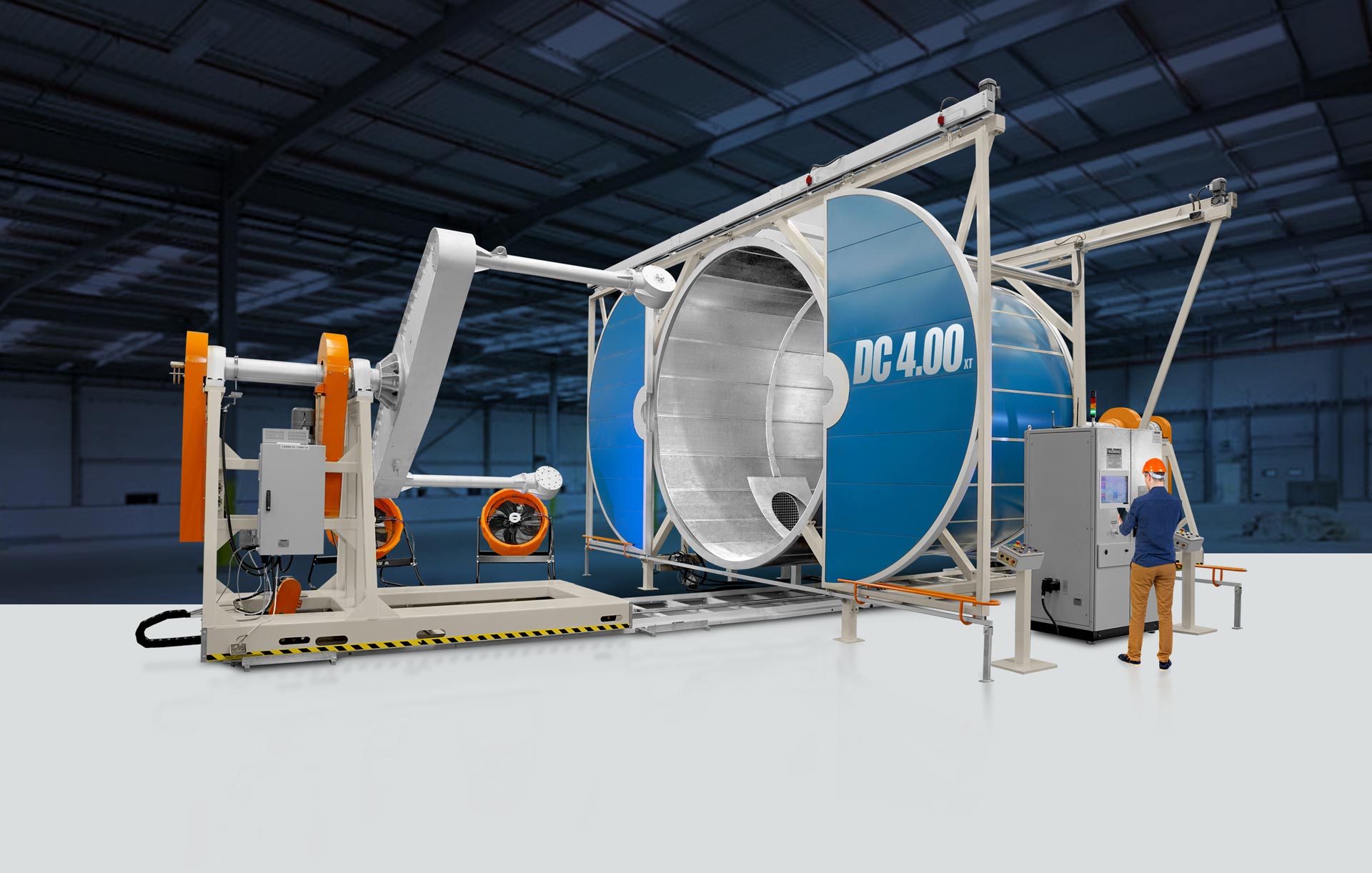

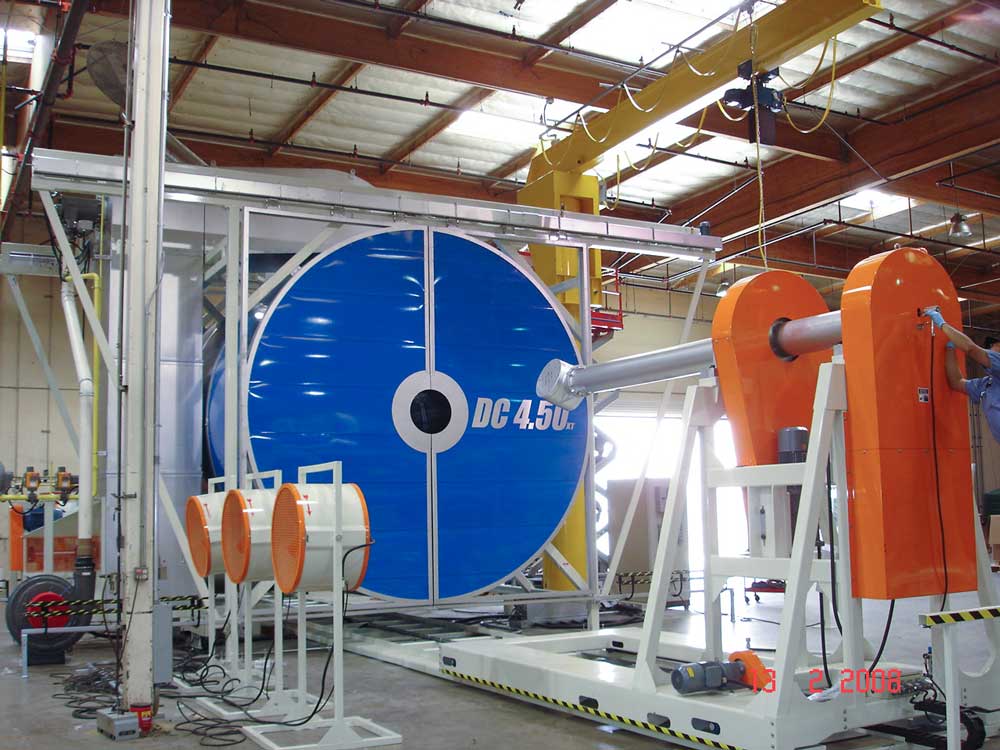

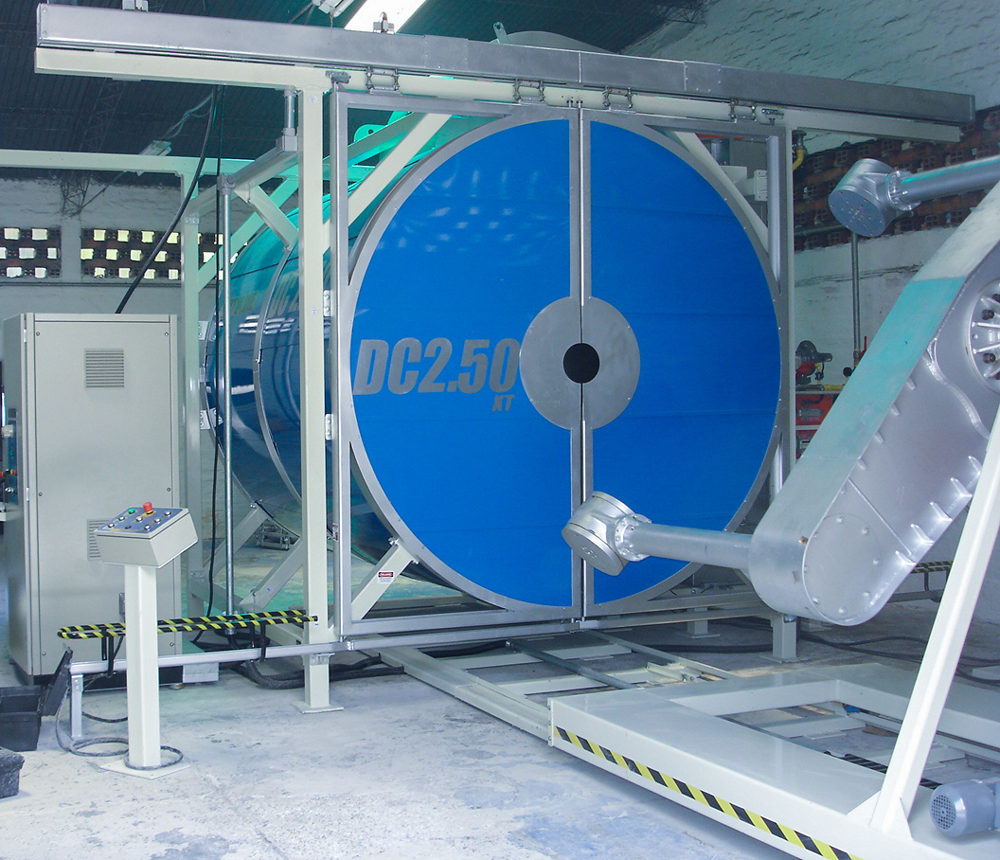

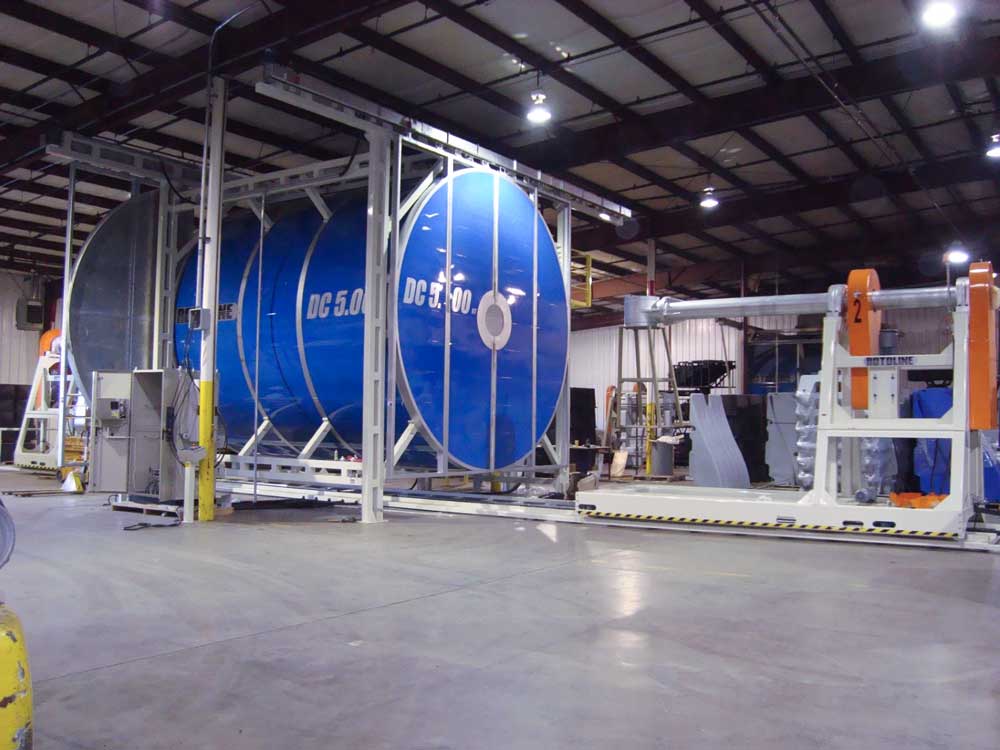

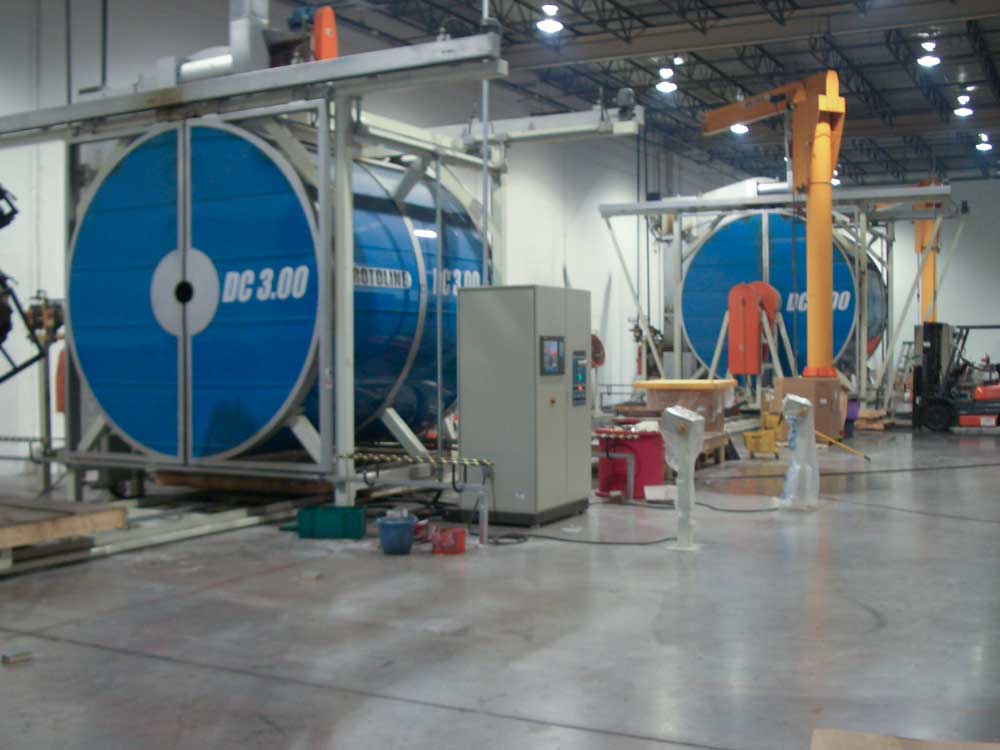

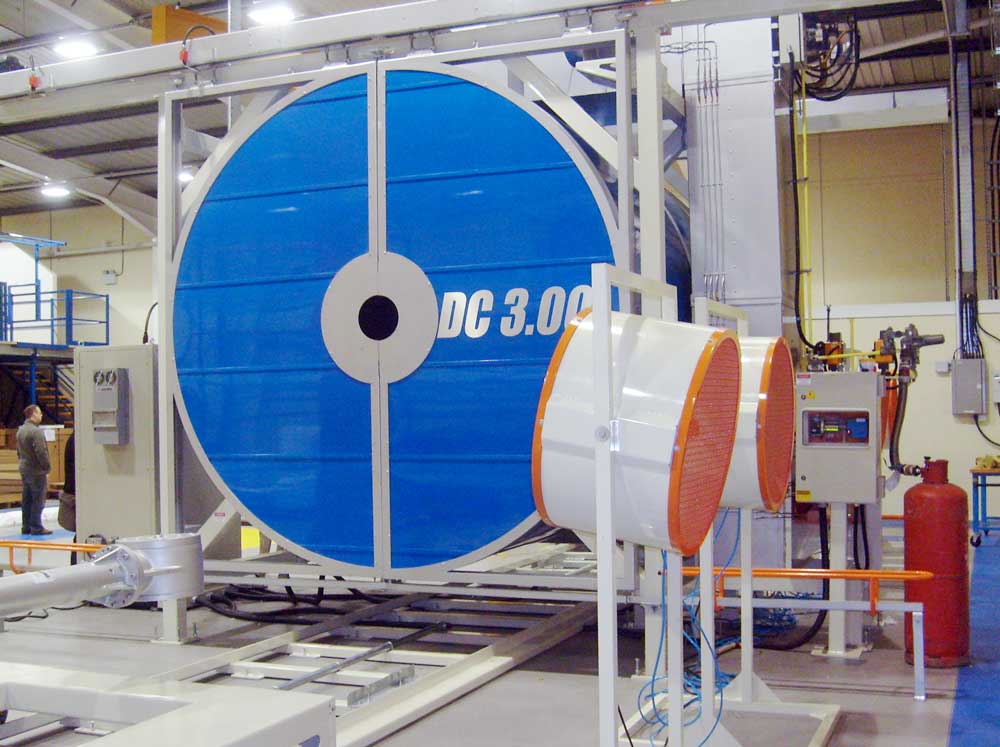

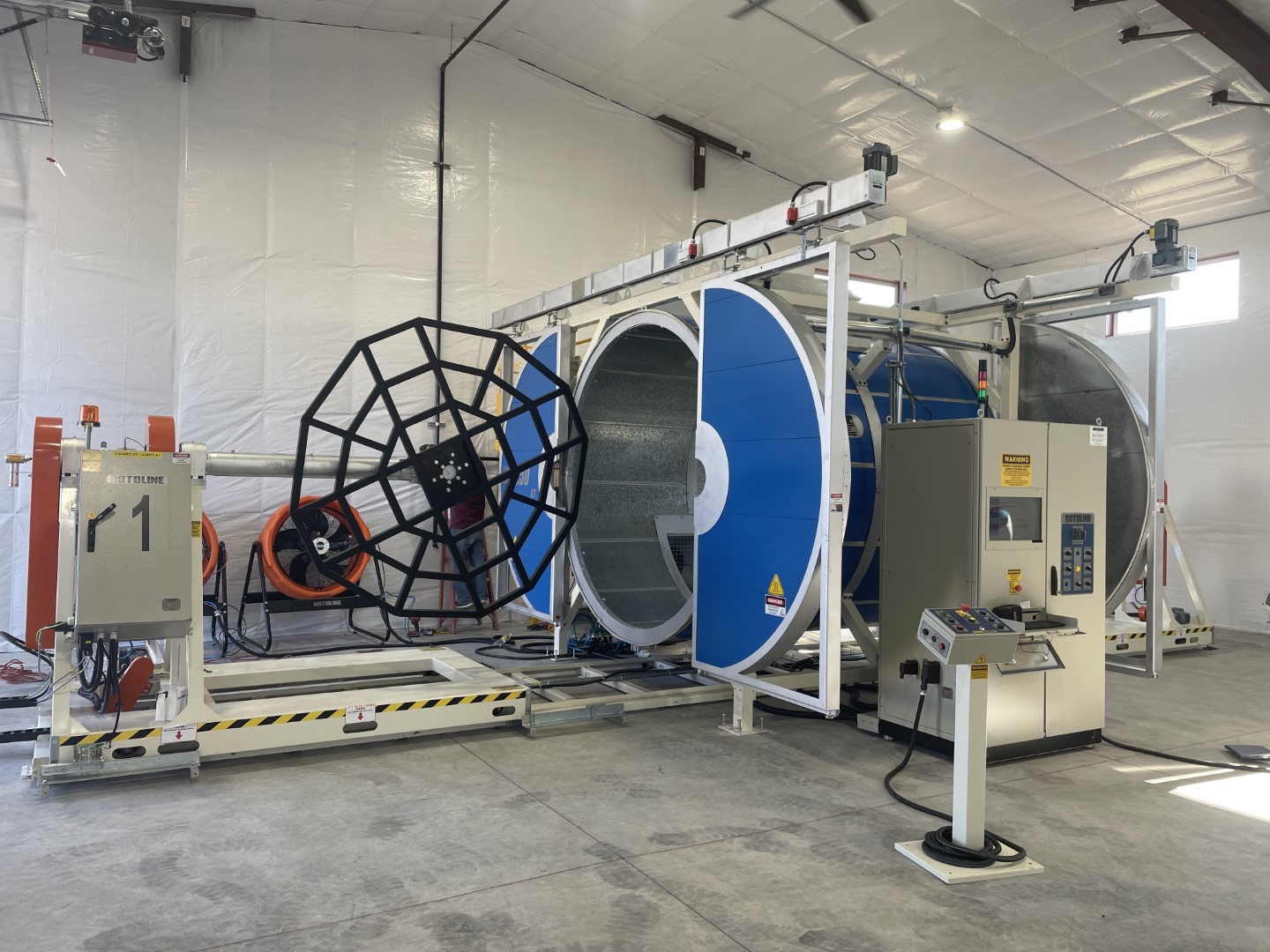

The Shuttle Machine series features a central oven, two operational stations, and two carts equipped with either straight or offset arms. The machine includes two cooling stations, offering an exceptional balance of productivity and cost-efficiency. Additionally, it provides the convenience of easy mold changes and the flexibility to operate with either one or both stations.
This series is suitable for producing a variety of products and enables the simultaneous use of different molds, allowing for varied production times and recipes in each cycle. The Shuttle machines can be enhanced with optional accessories, such as the gas flow meter. This device is fully integrated with the machine’s control software, delivering precise records of gas consumption by cycle, quantity of parts produced, and the weight of the material processed. The Shuttle Machine is available in a variety of sizes to suit different production needs.

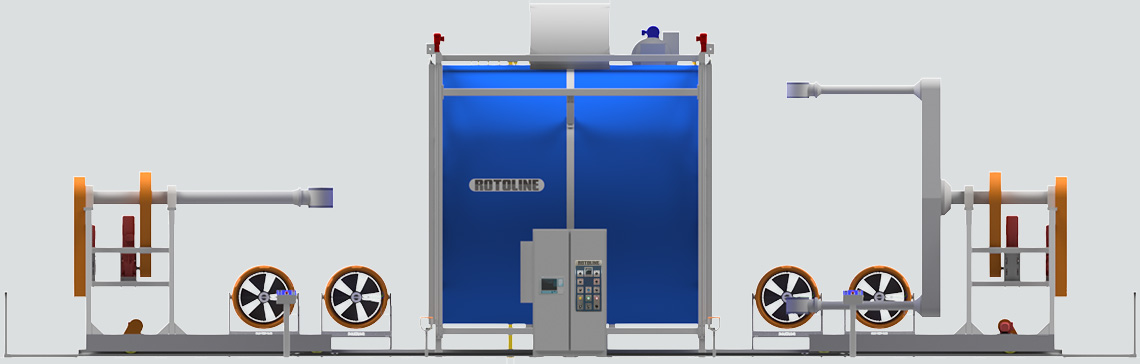

MACHINE

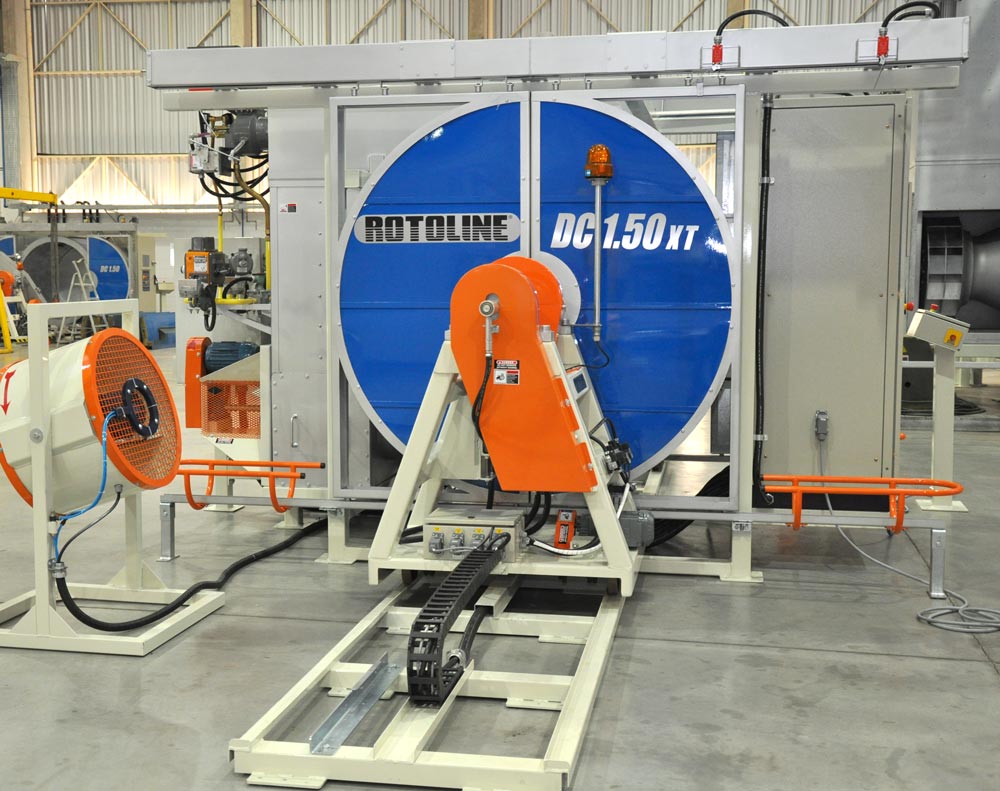

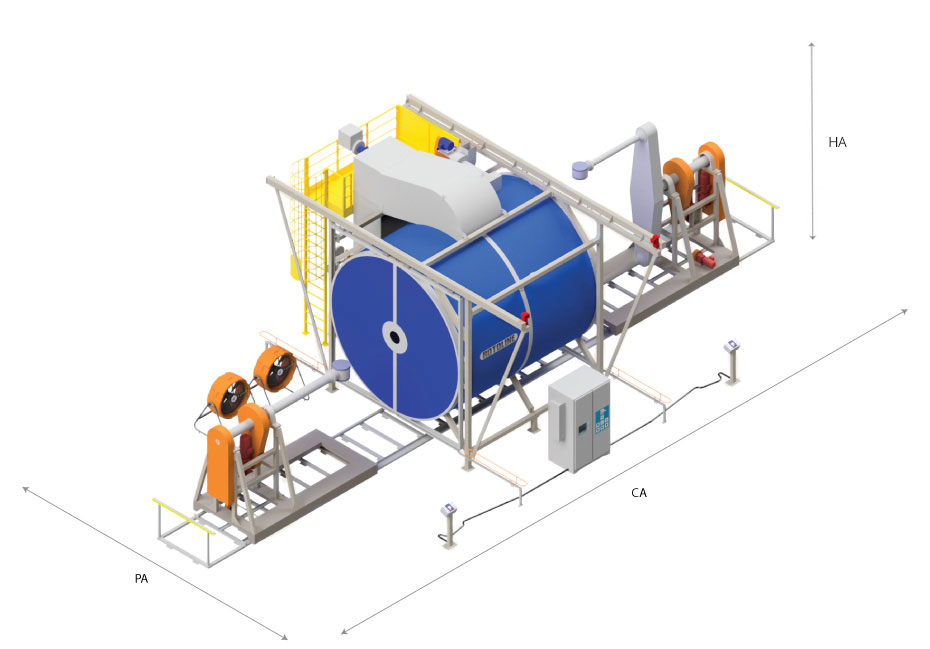

DIMENSIONS

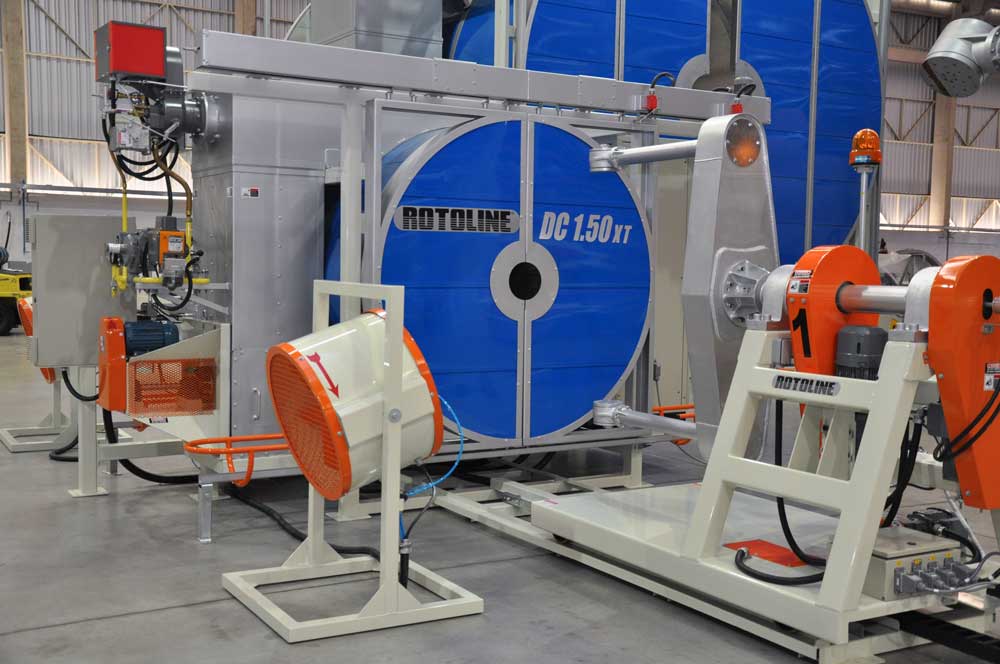

DC 1.50 XT
HA
2760 mm
109 in
CA
8000 mm
315 in
PA
3880 mm
153 in
Ø OVEN
1500 mm
59 in
* Measurements are approximate and may be adjusted by the manufacturer.

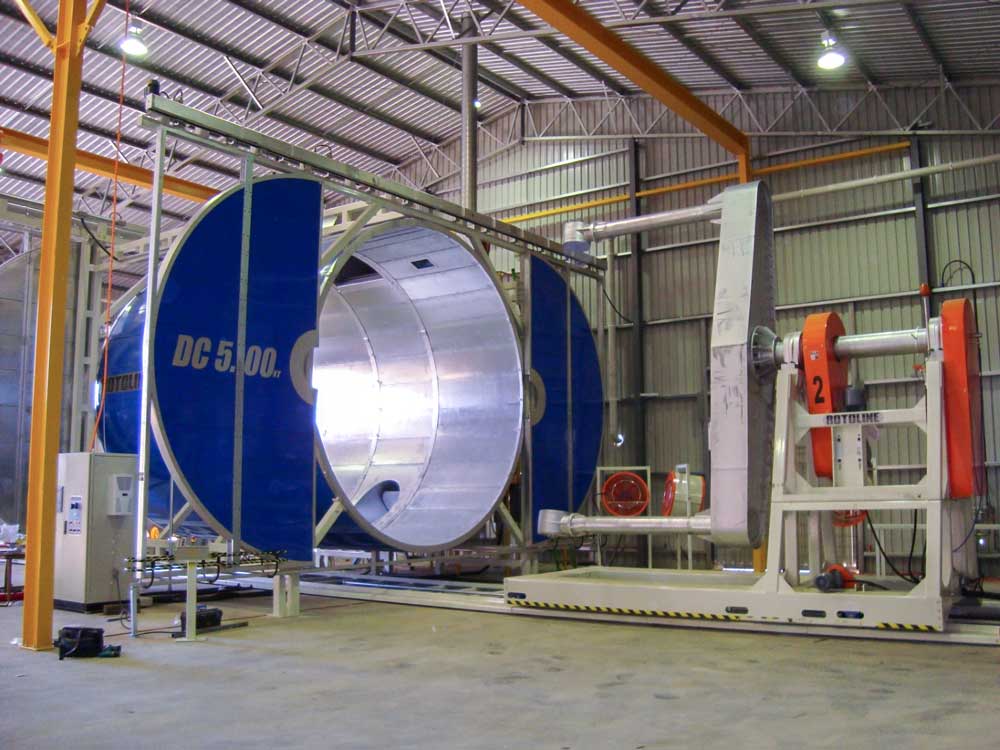

ROBUST
MECHANICS

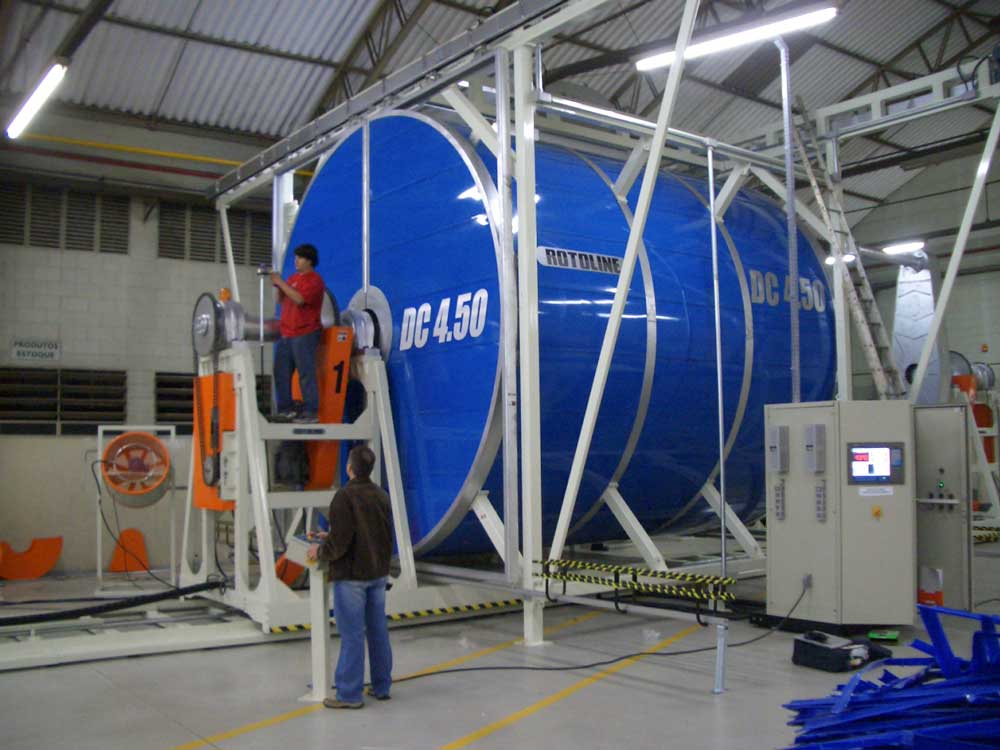

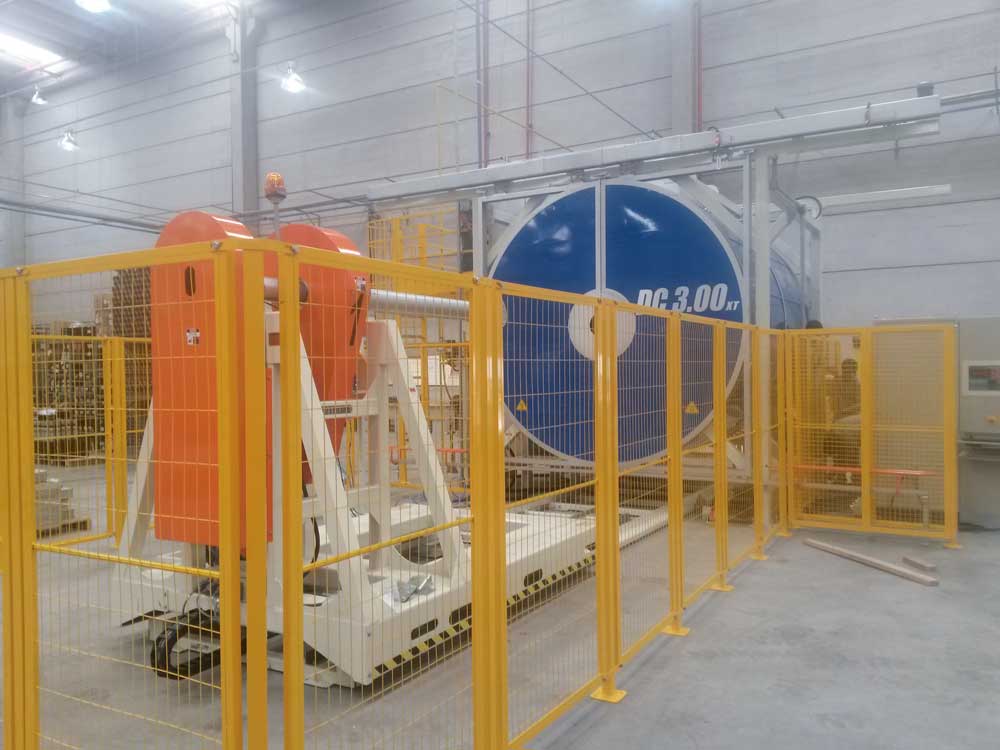

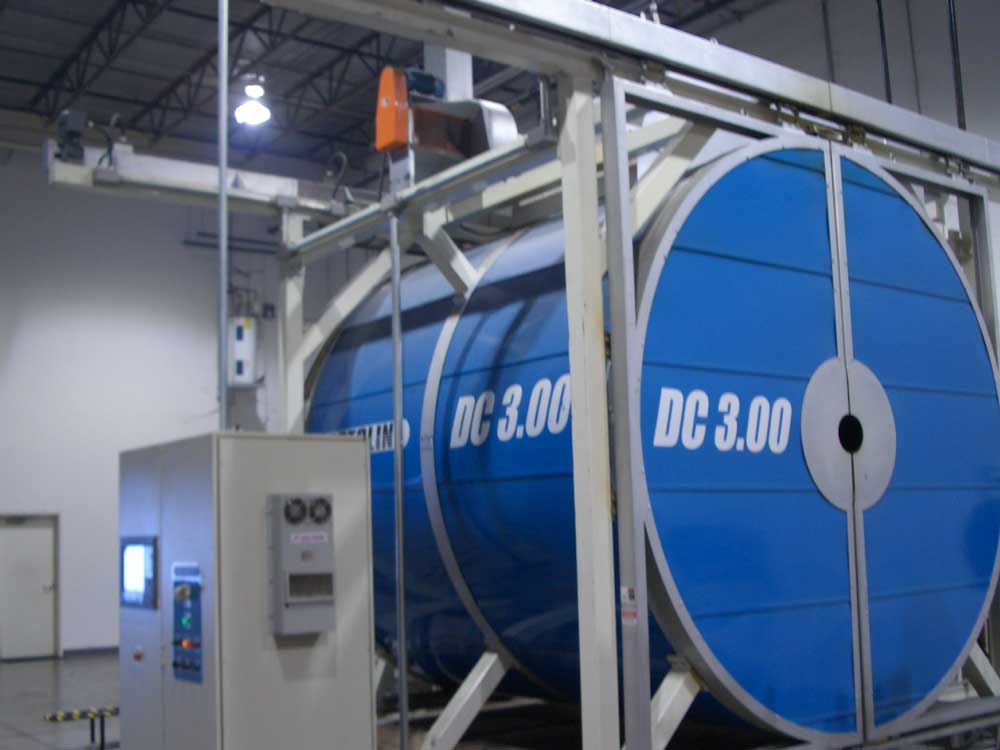

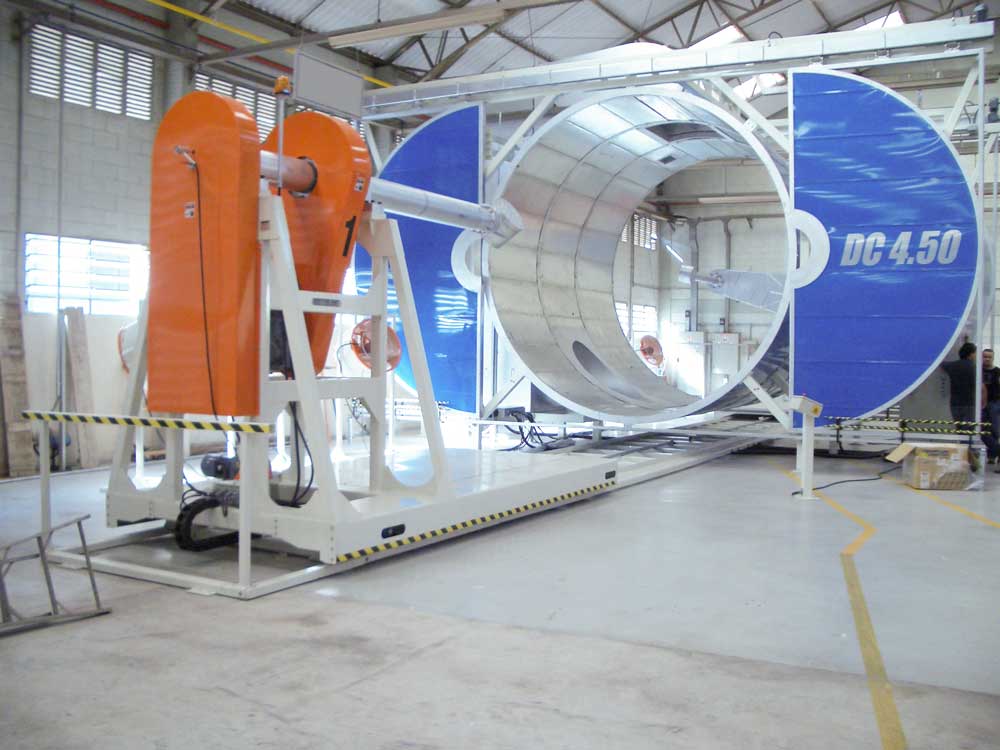

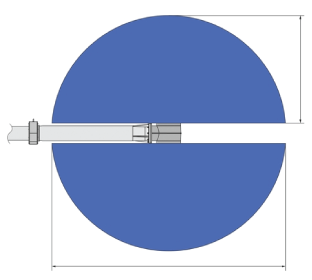

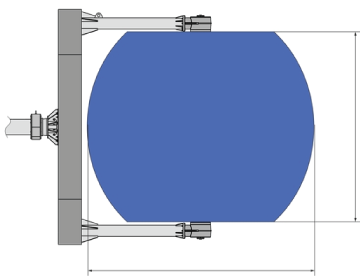

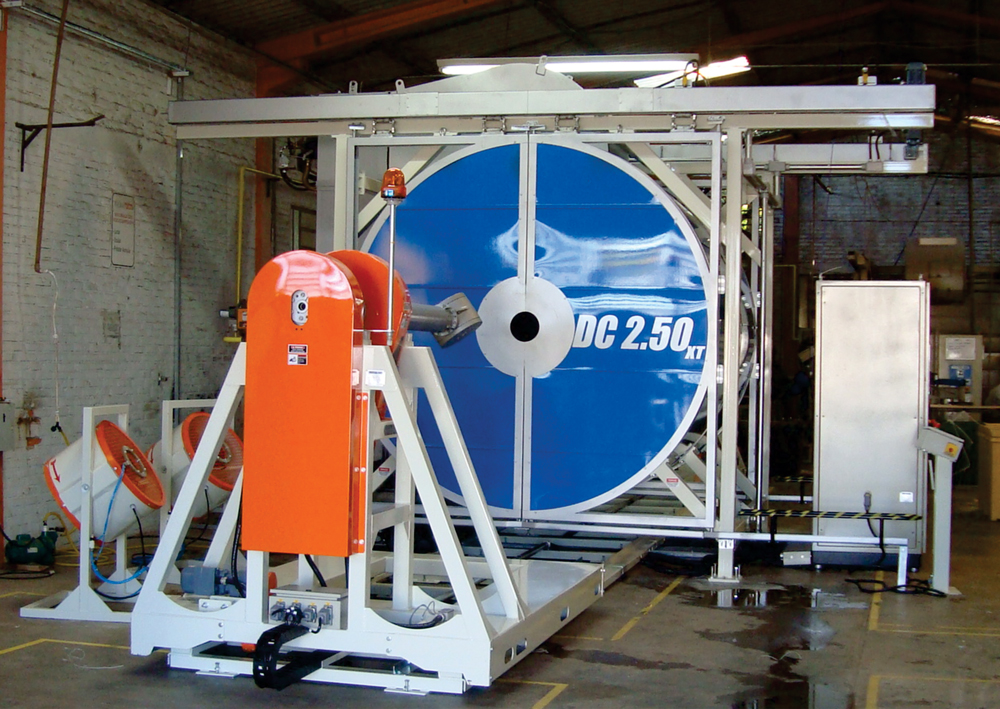

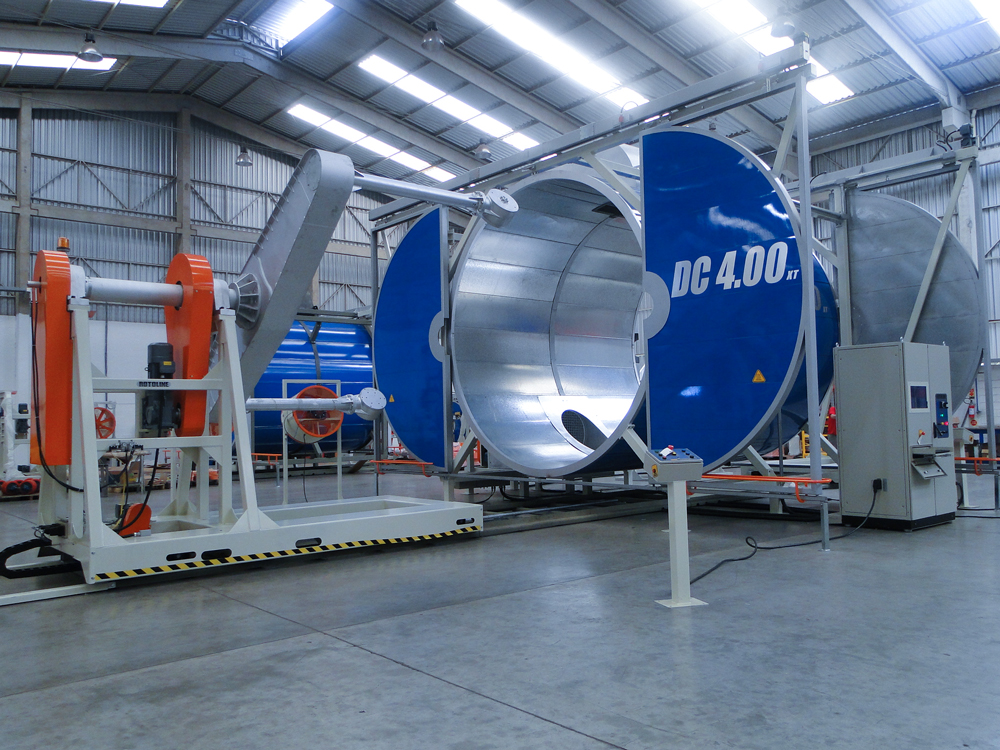

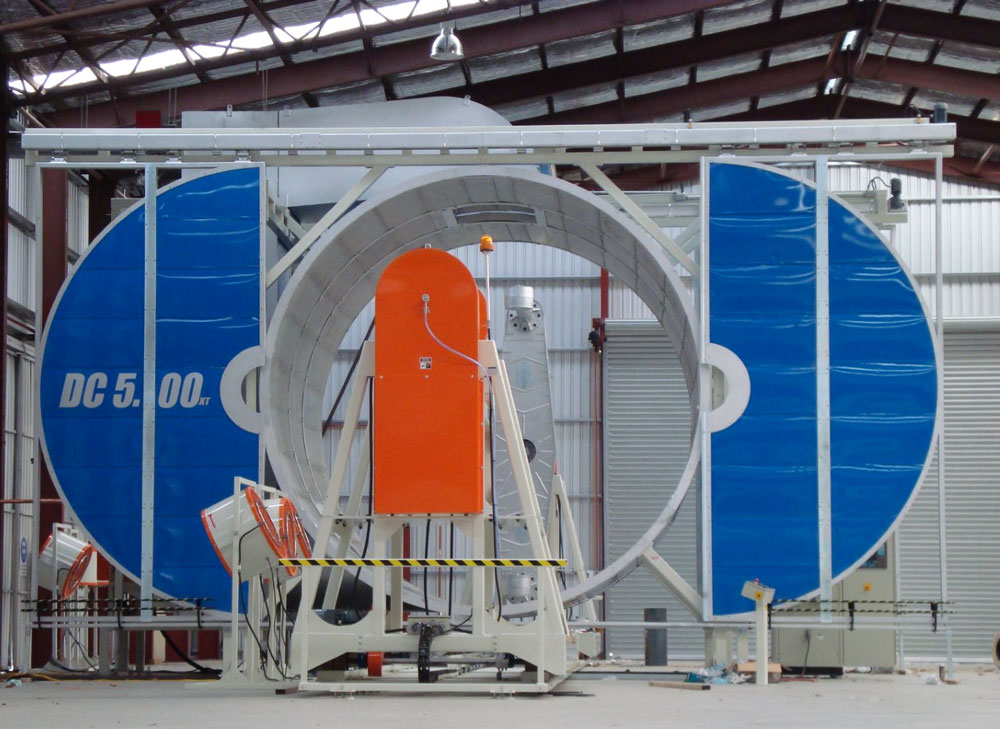

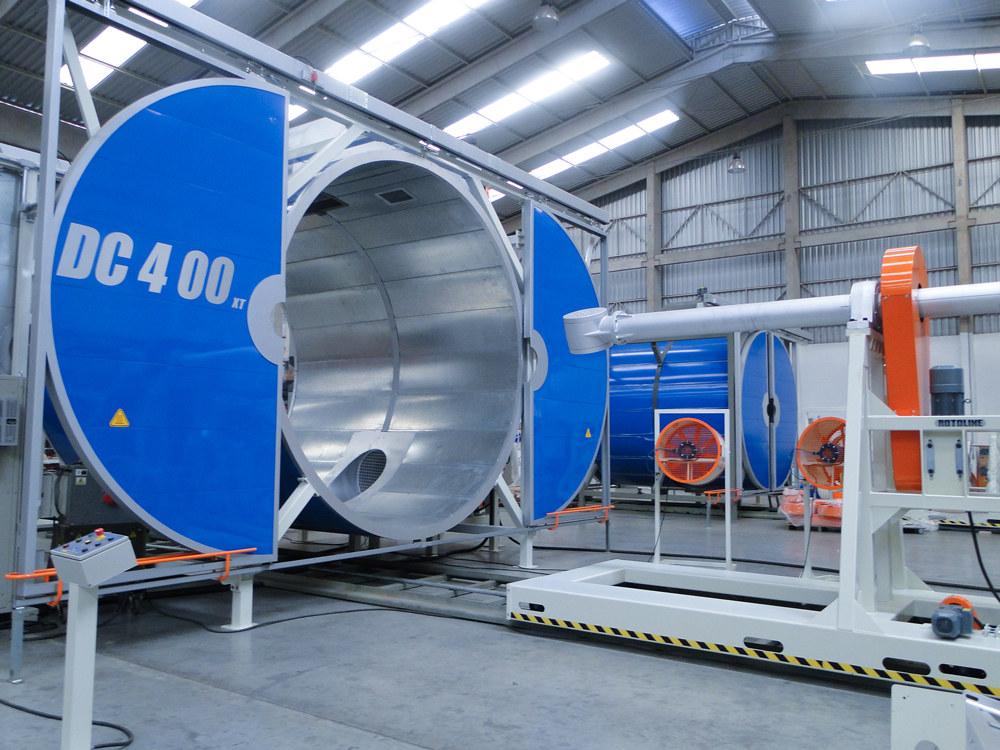

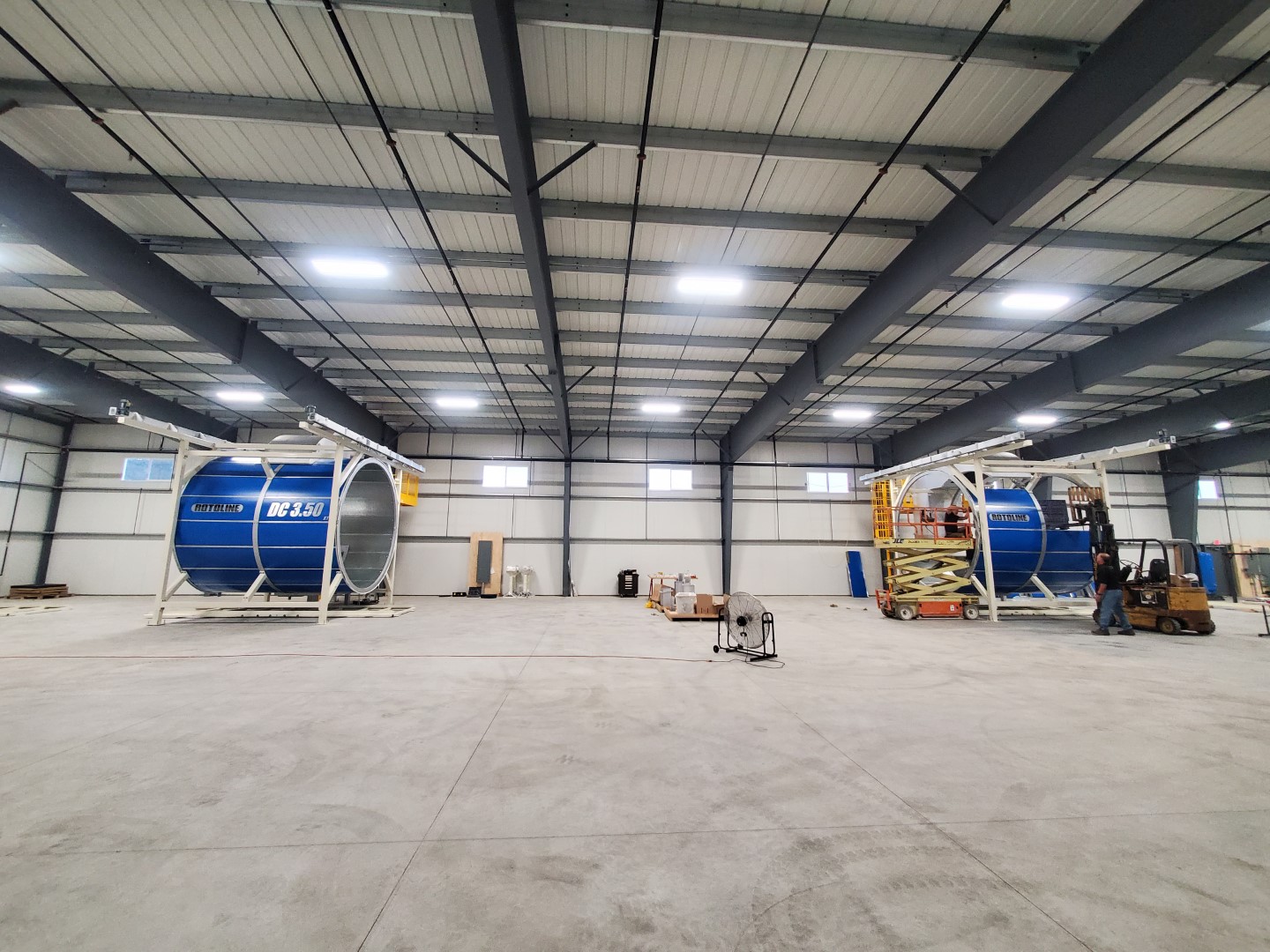

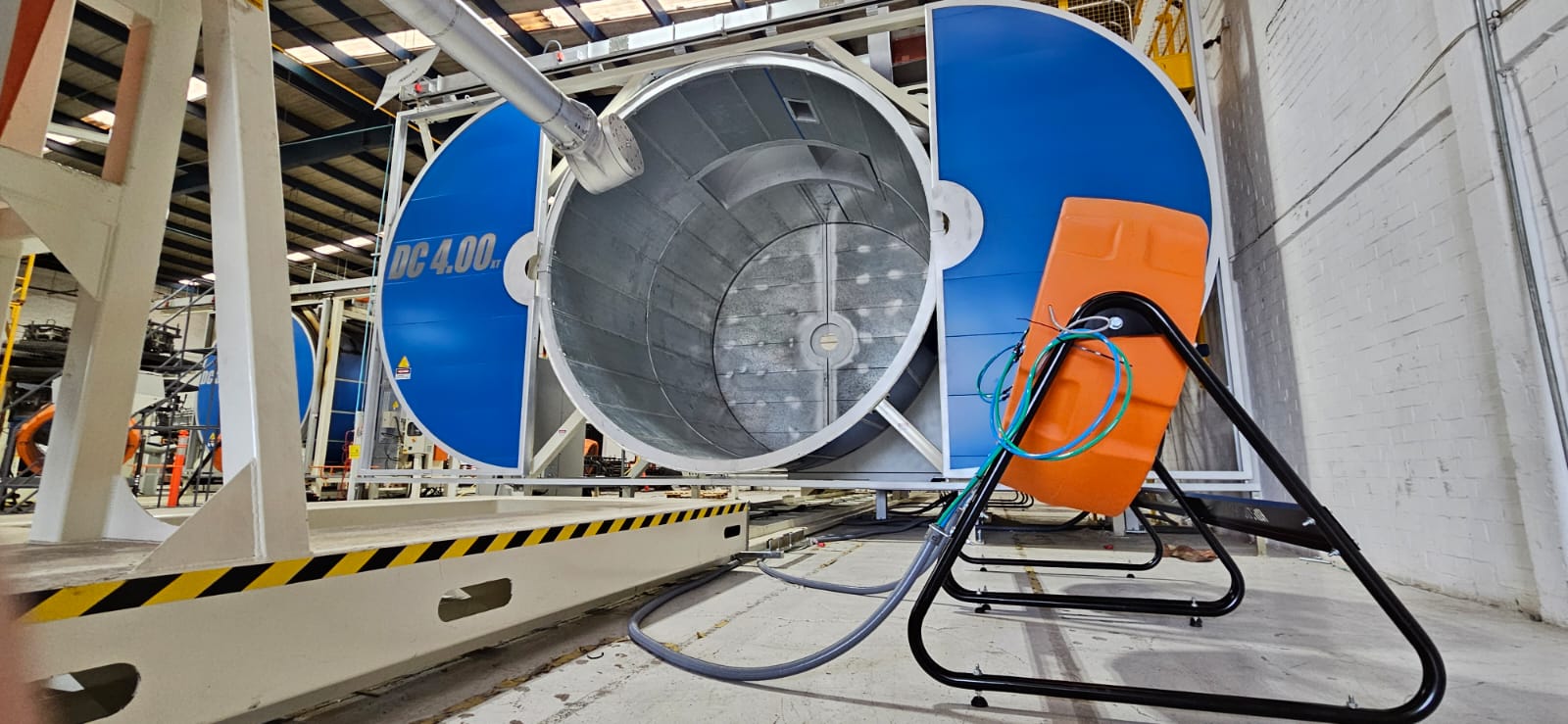

Composed by three support bases (chassis), one for each station (cart) and the third for the central oven, which has an exclusive horizontal cylindrical shape, with a diameter up to 5 meters. Made of treated carbon steel, it is equipped with a recirculation fan with start and speed control by variable frequency drive, recirculation duct and burner. Both carts have a “Central” arm (STRAIGHT) or a “C” type arm (OFFSET) option. Each has three gearmotors, in addition to a double cooling system and variable frequency drives.
INTEGRATED
WIRING

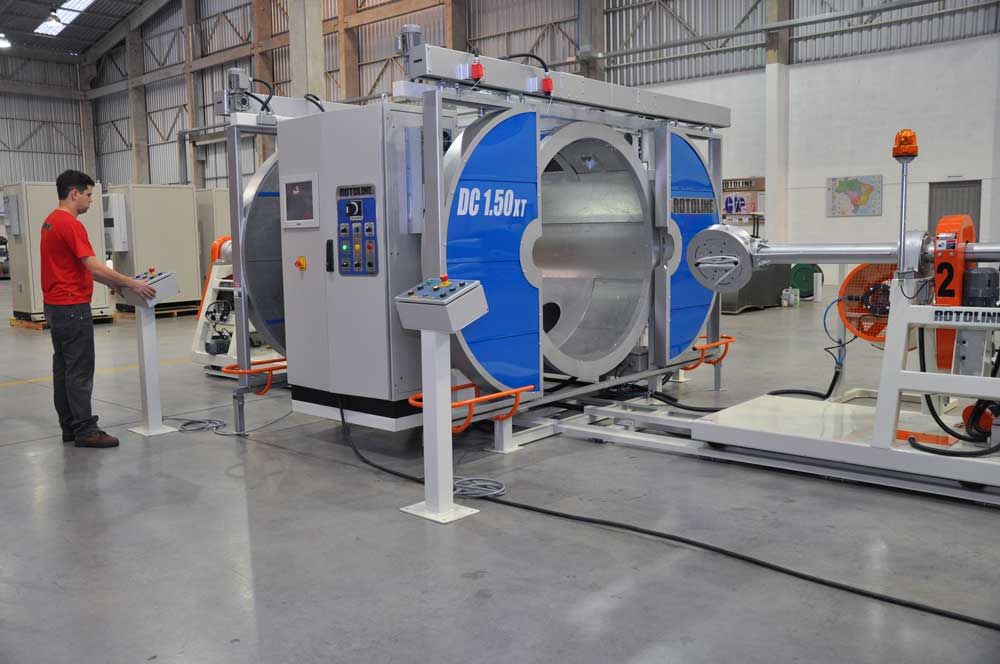

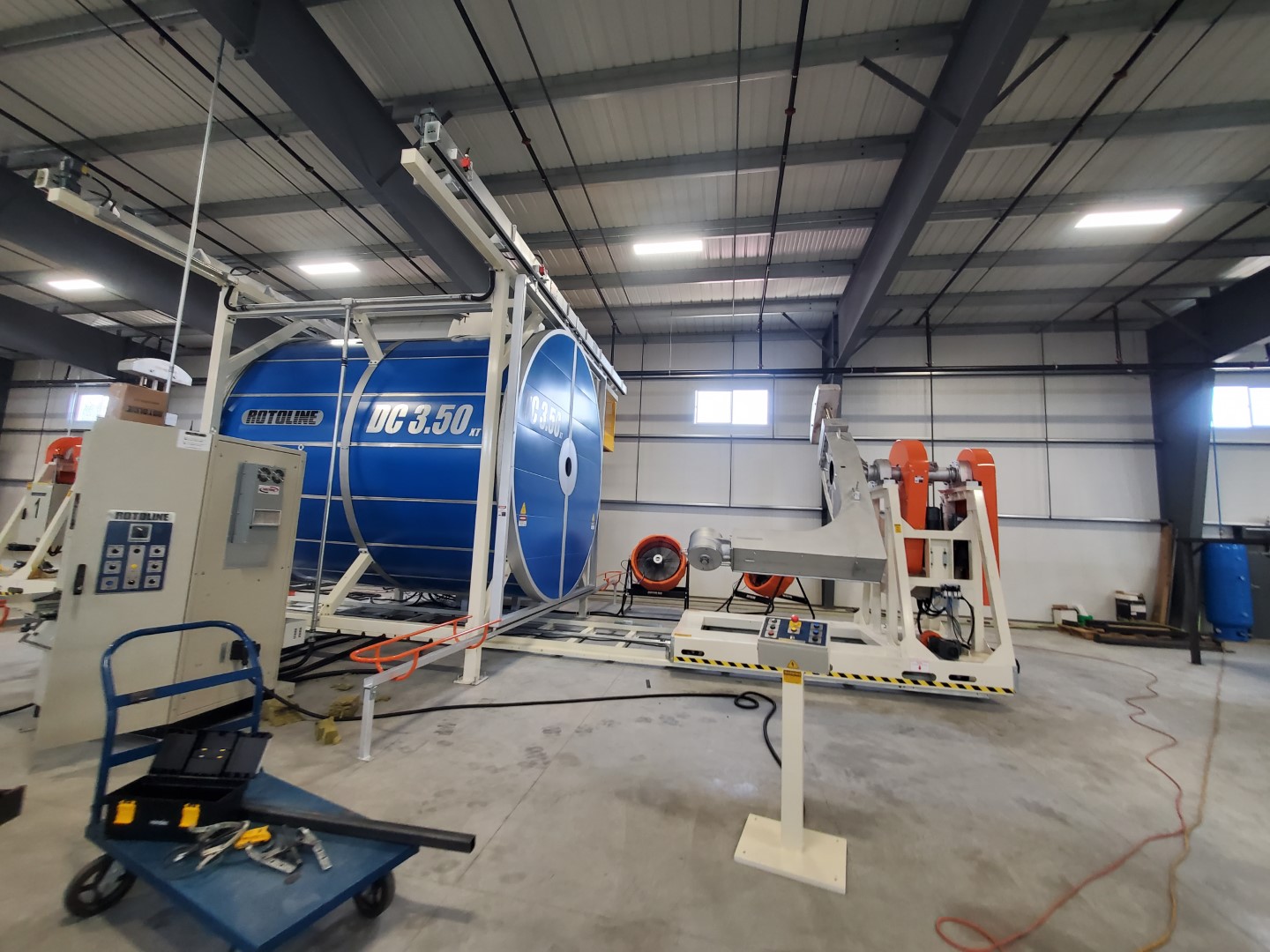

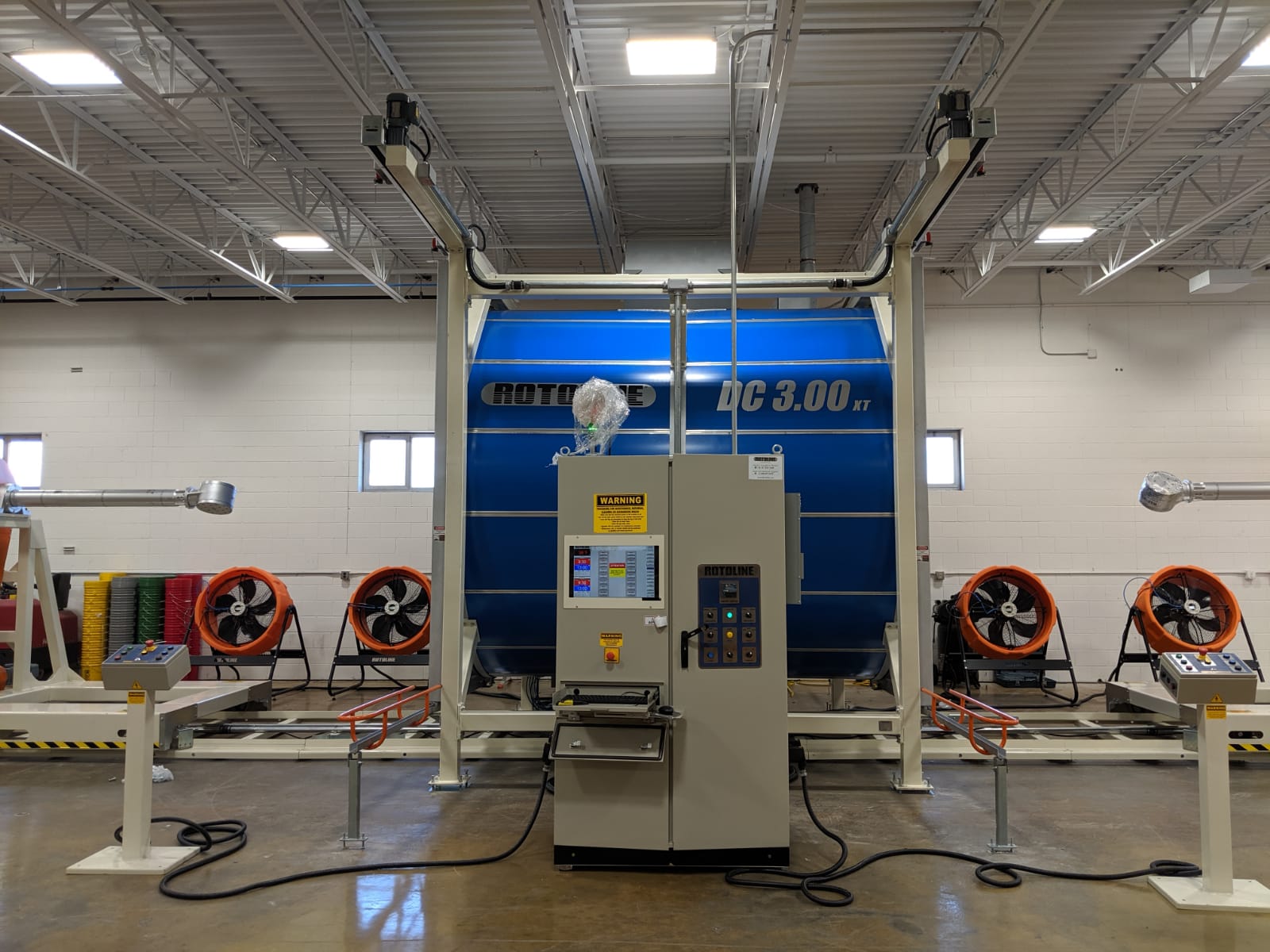

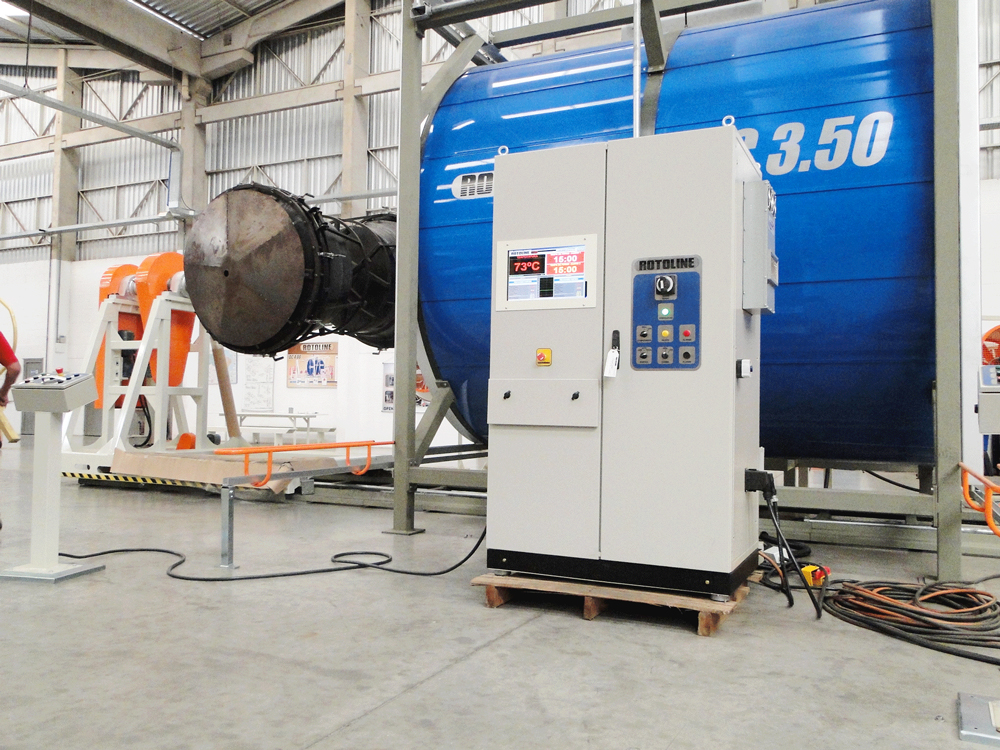

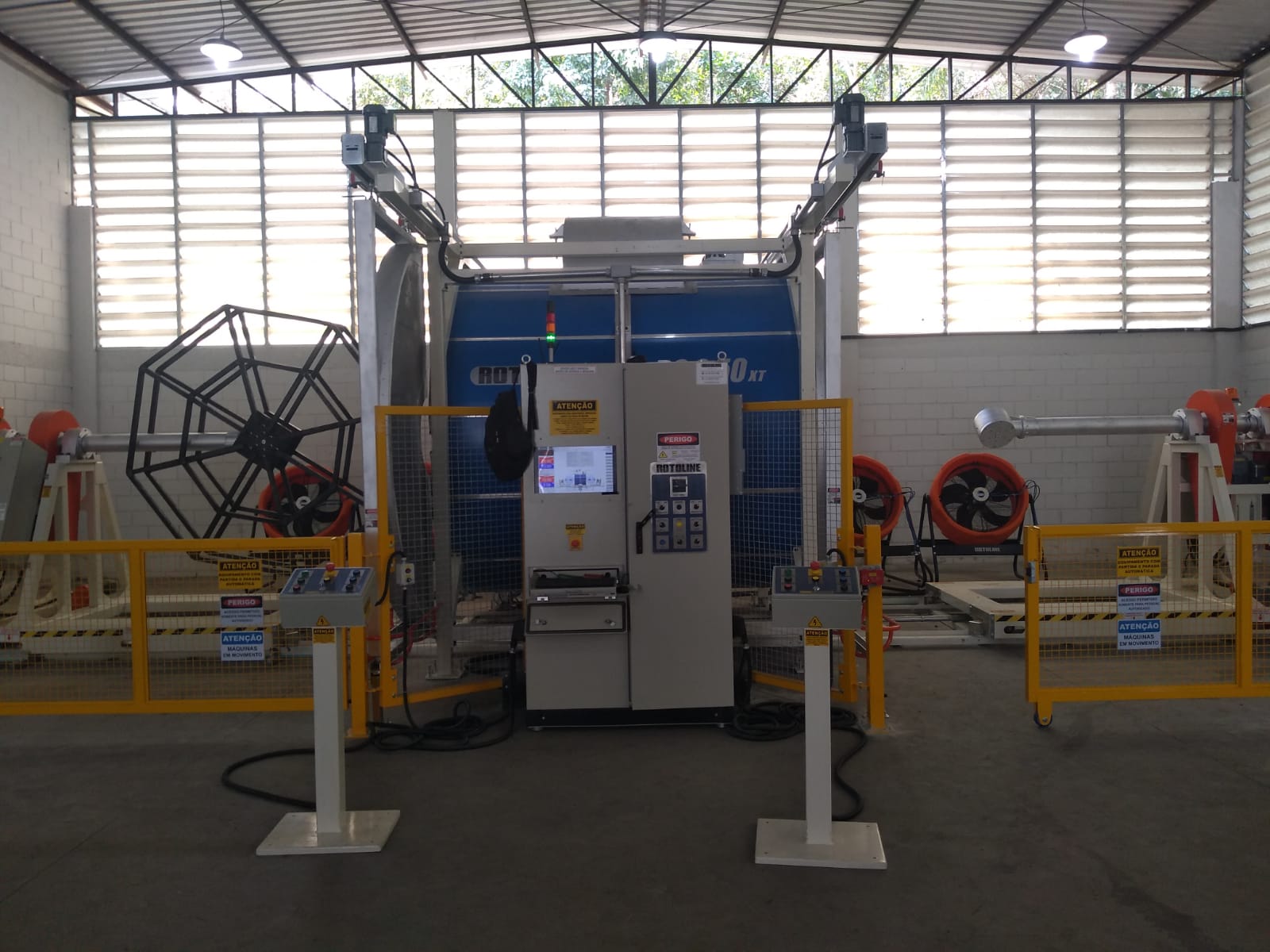

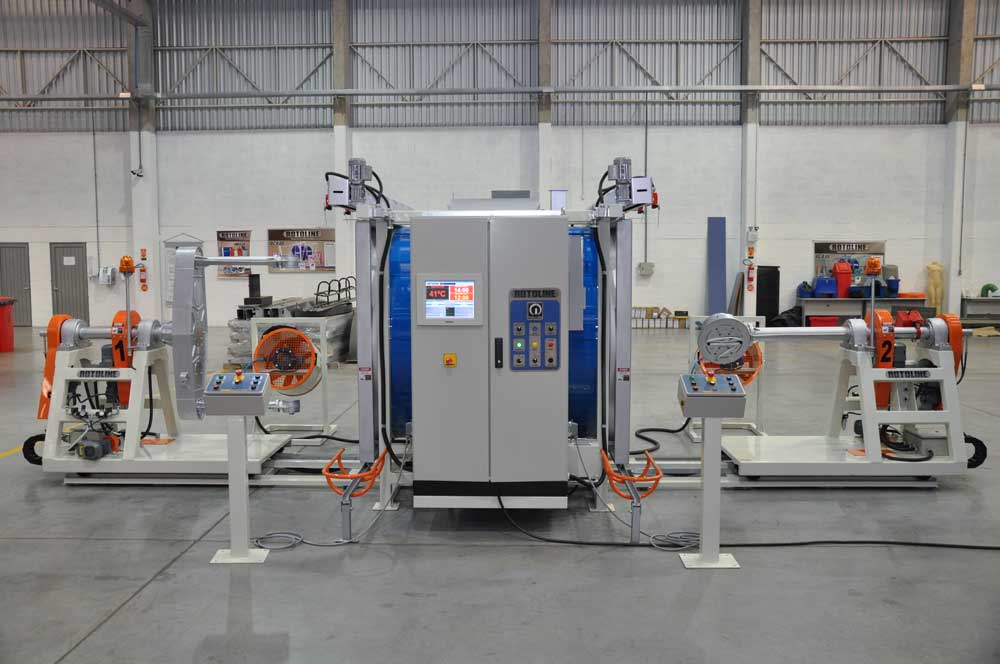

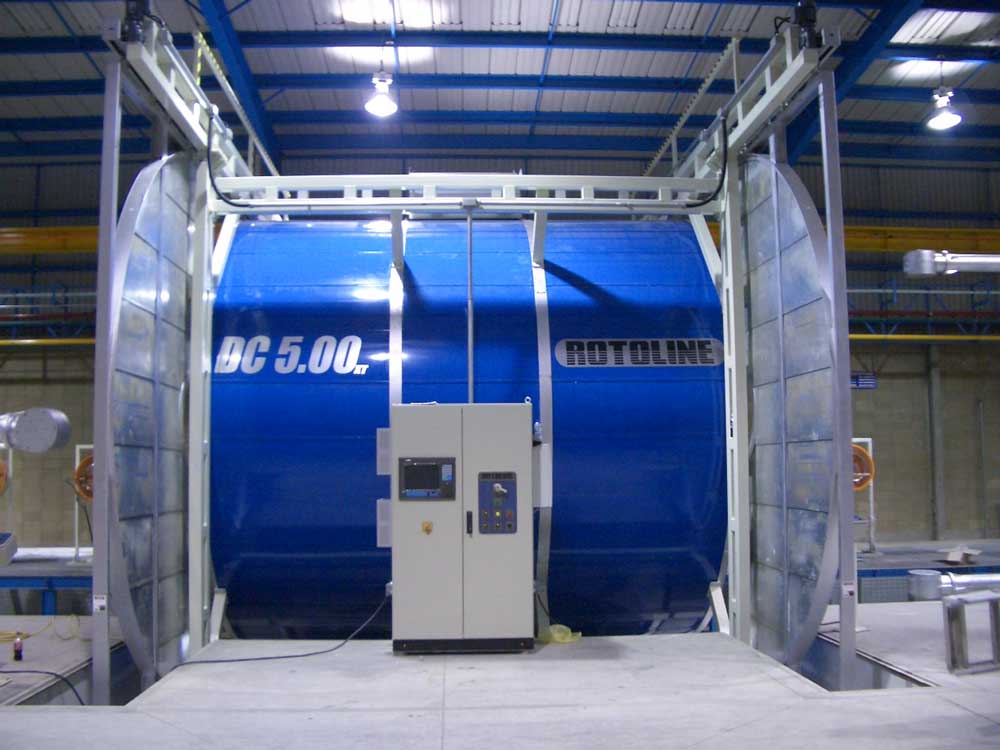

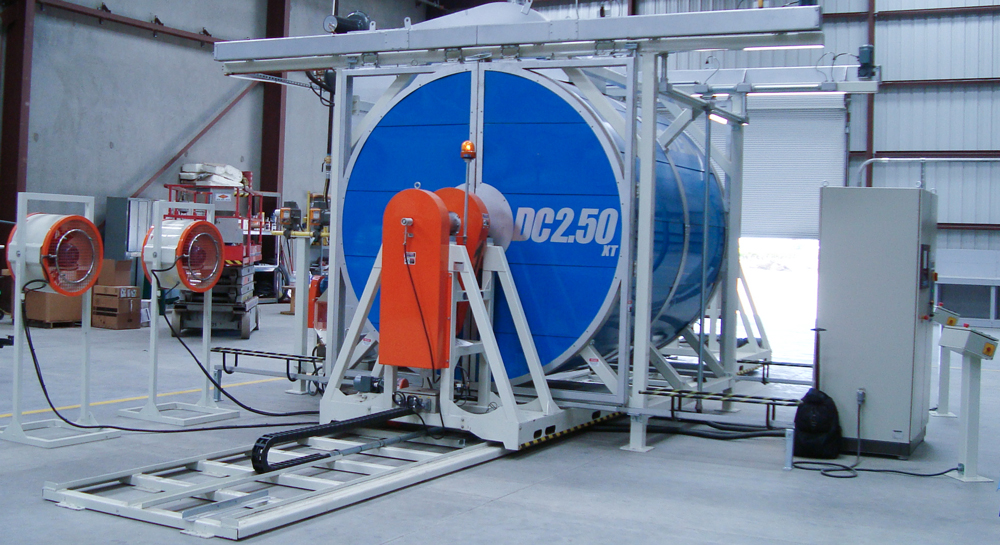

The machine is equipped with a Main Panel where all electromechanical and programmable components are installed and connected. It also has two individual control podiums for each station, giving the operator three control and operation places. All panel connections to the field devices are made using quick plugs (plug and play), reducing the time needed for installation. It also has a complete electrical design, easy to interpret, enabling quick checks and agility in maintenance.
SMART
CONTROL
The machine's Programmable Logic Controller (PLC) is loaded with a software management control system which gathers information from multiple sensors such as temperature and pressure, installed in various parts of machine, doing all the interlock and control functions of machine operation and providing a specific an concise input to controller of the gas burner.
See below a small sample of the variety of products that can be manufactured by the rotational molding process.
Reading Time: 12 minutes
Plastic rotational molding is one of the most important techniques for developing products in this material. If you are looking for a practical guide to understand and achieve the best results in plastic rotational molding, you are in the right place.
Reading Time: 4 minutes
See how to choose the right rotational shaping machine for your business and check out the rotational molding machine options that Rotoline has available for you.
Reading Time: 3 minutes
Rotoline is responsible for the manufacturing and technical support of innovative and revolutionary rotational molding machines for the plastics market.
Reading Time: 4 minutes
Some basic care and of fast execution show the extreme importance of control, detection, and troubleshooting in the rotomoulding machines. After all, the cost of scheduled maintenance is exponentially smaller than the cost of unscheduled maintenance.
Rotoline is a global supplier of Rotational Molding Machines with one of the highest quality standards. Currently, it has machines installed on 5 continents.
MACHINES
ROTOLINE BRASIL
ROTOLINE USA
ROTOLINE EUROPE

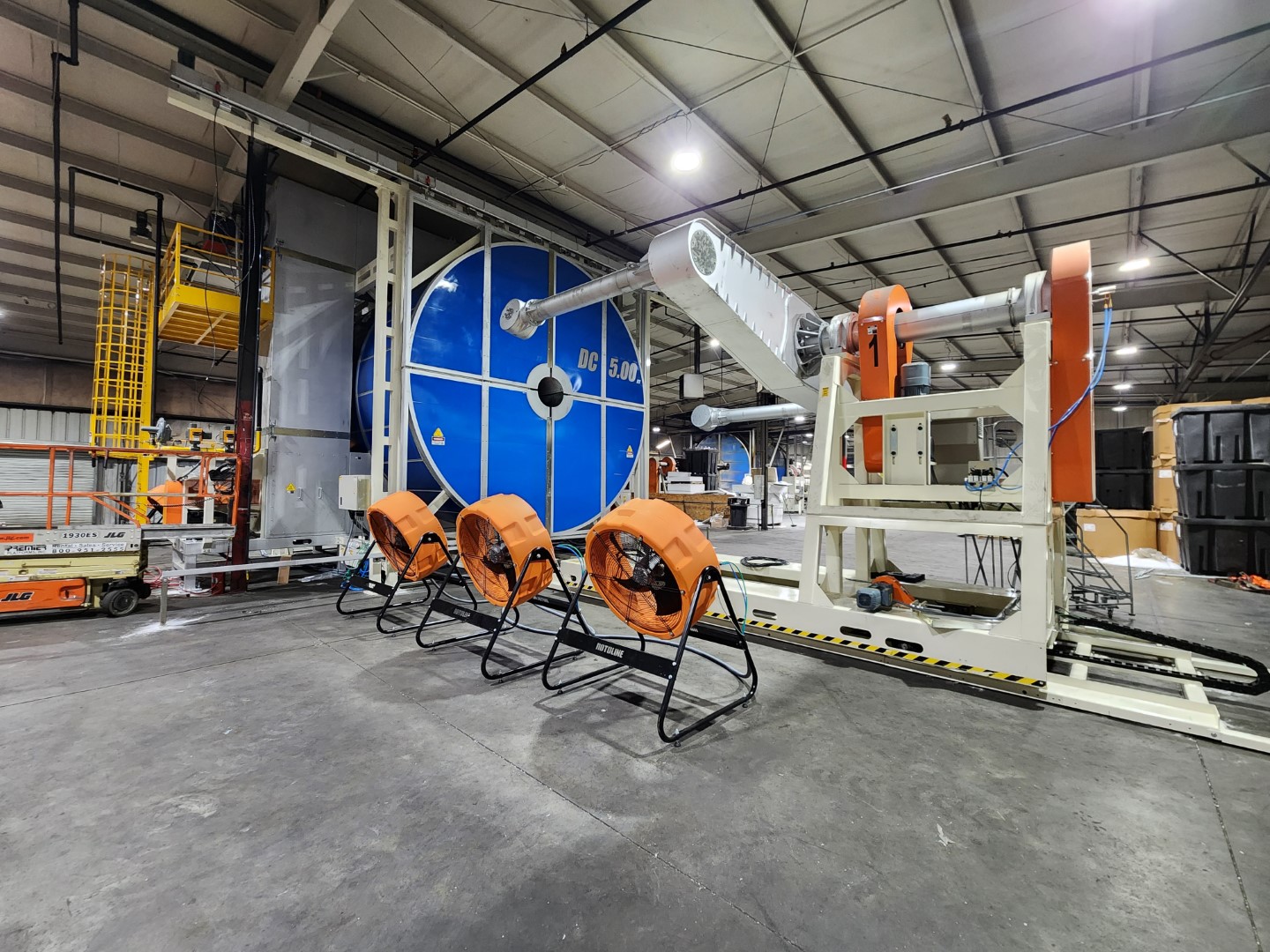

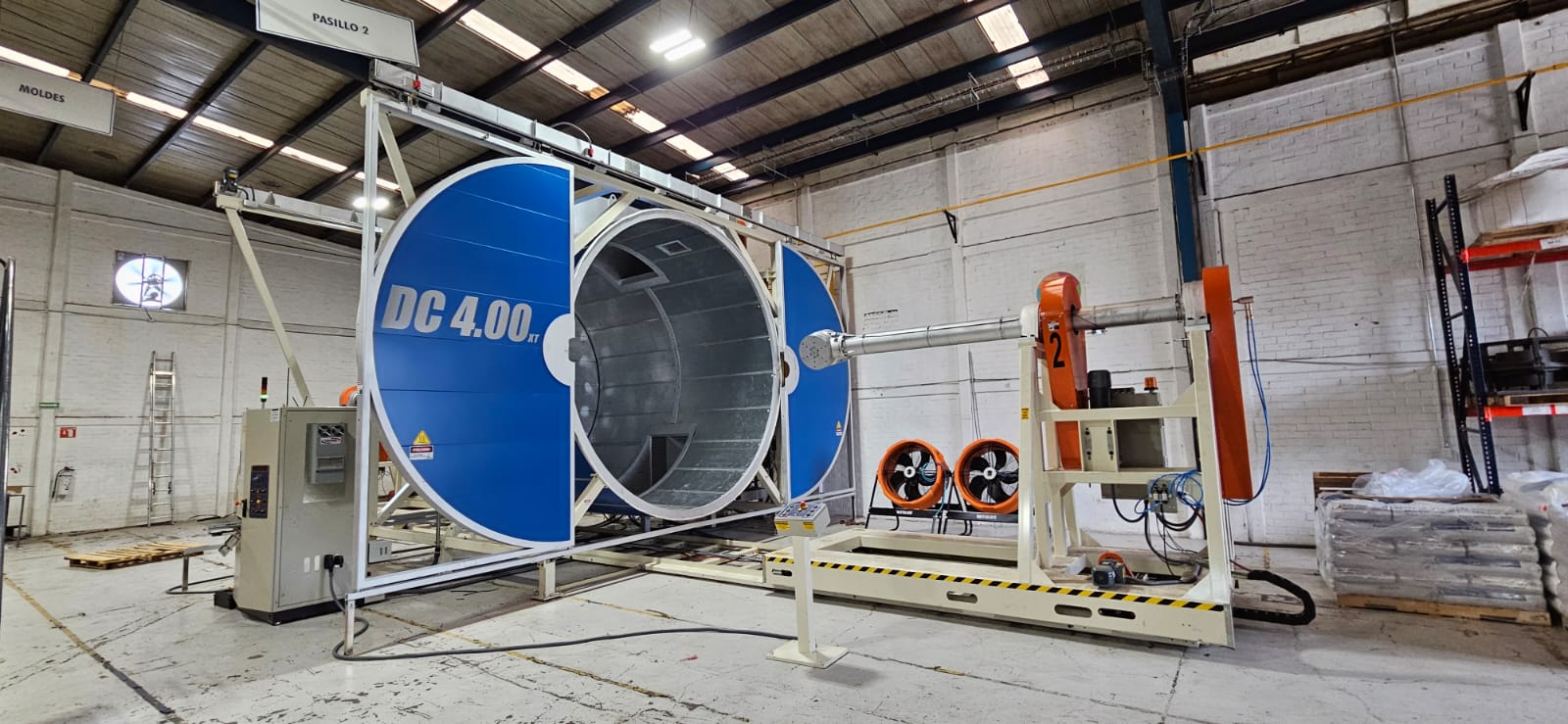

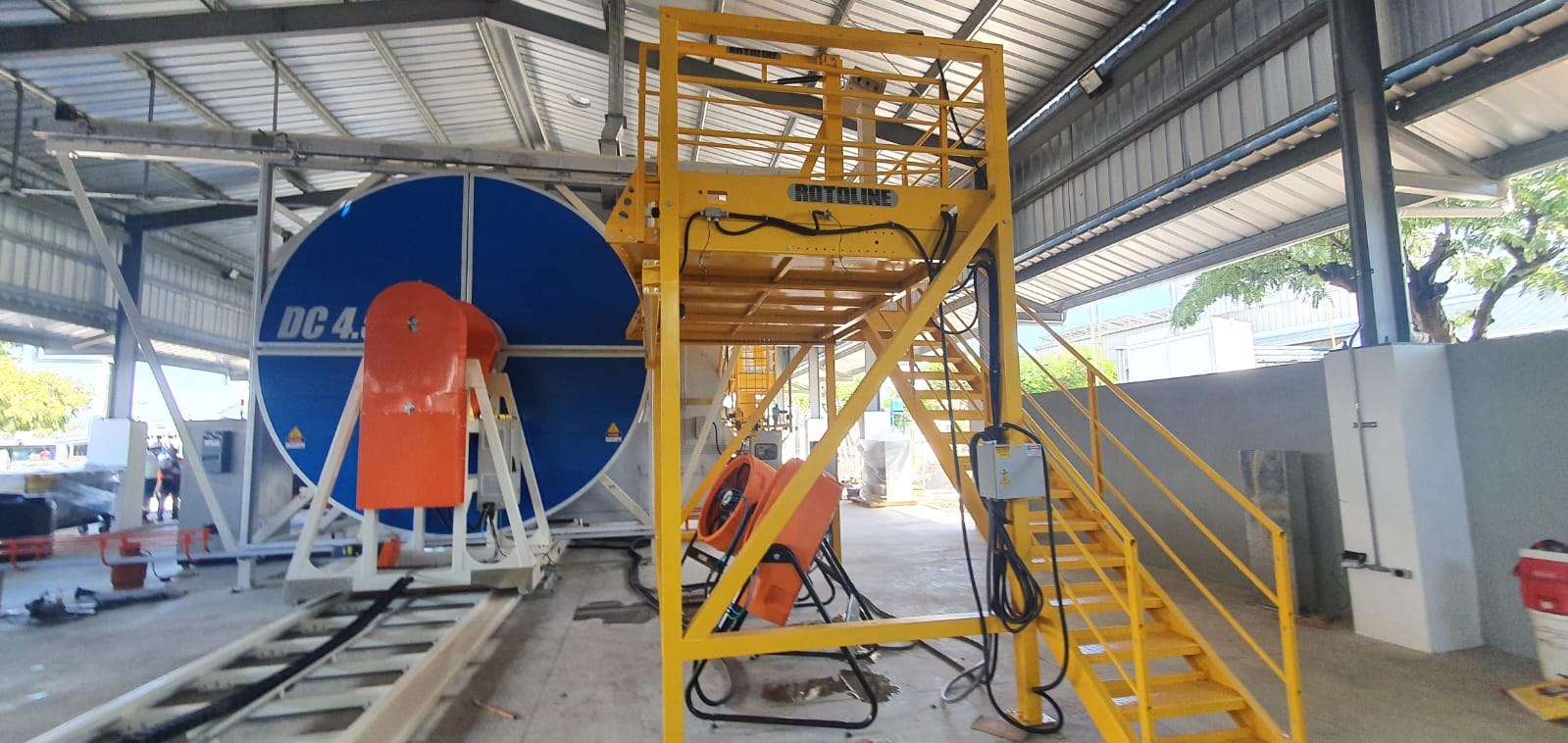

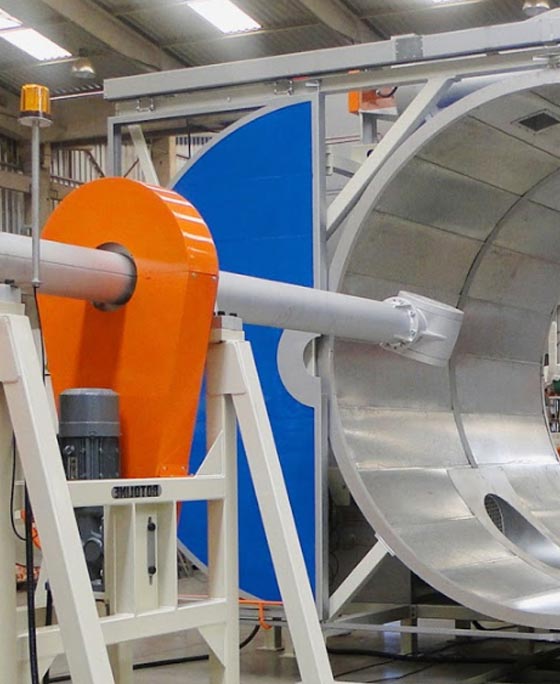

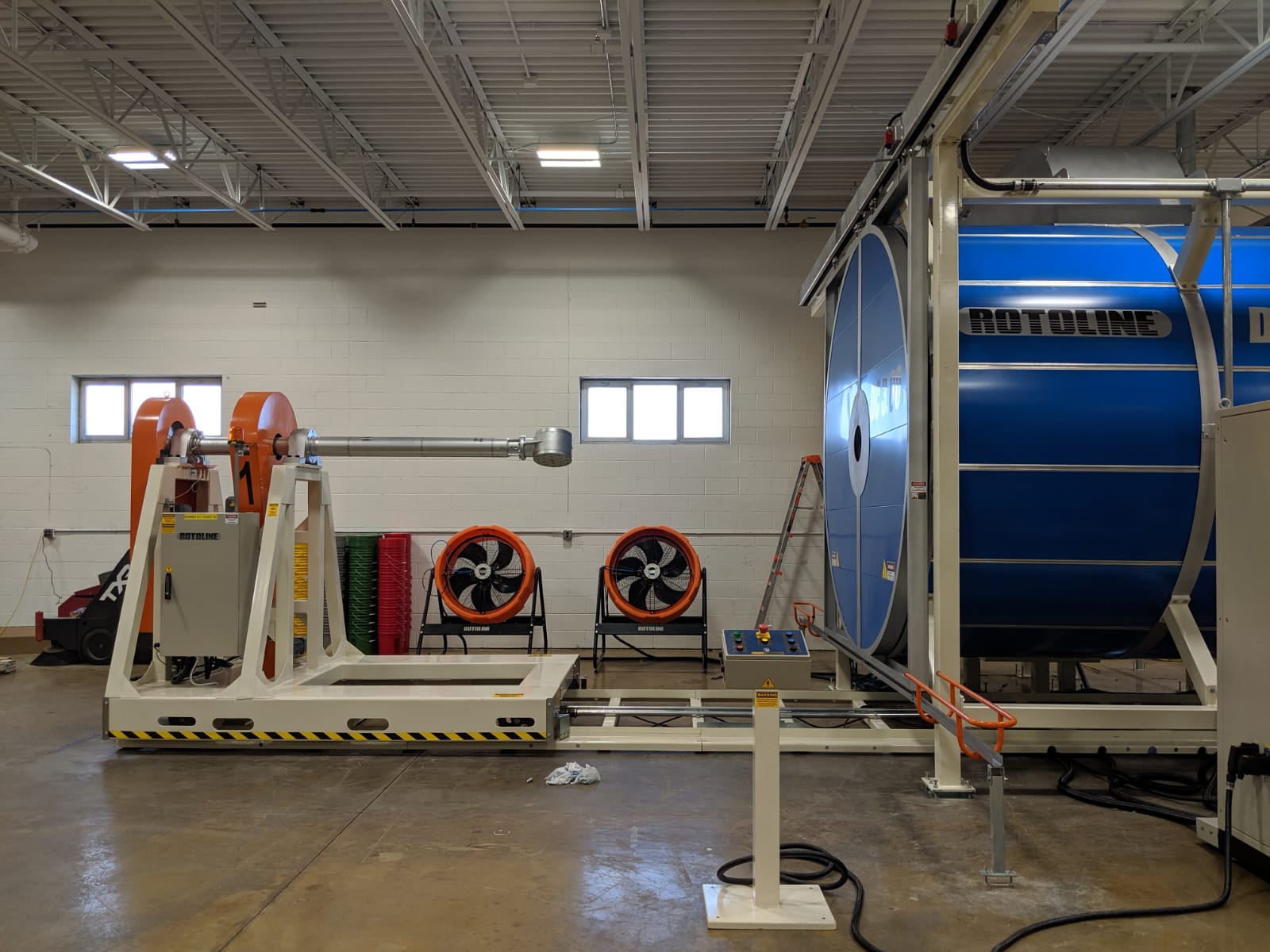

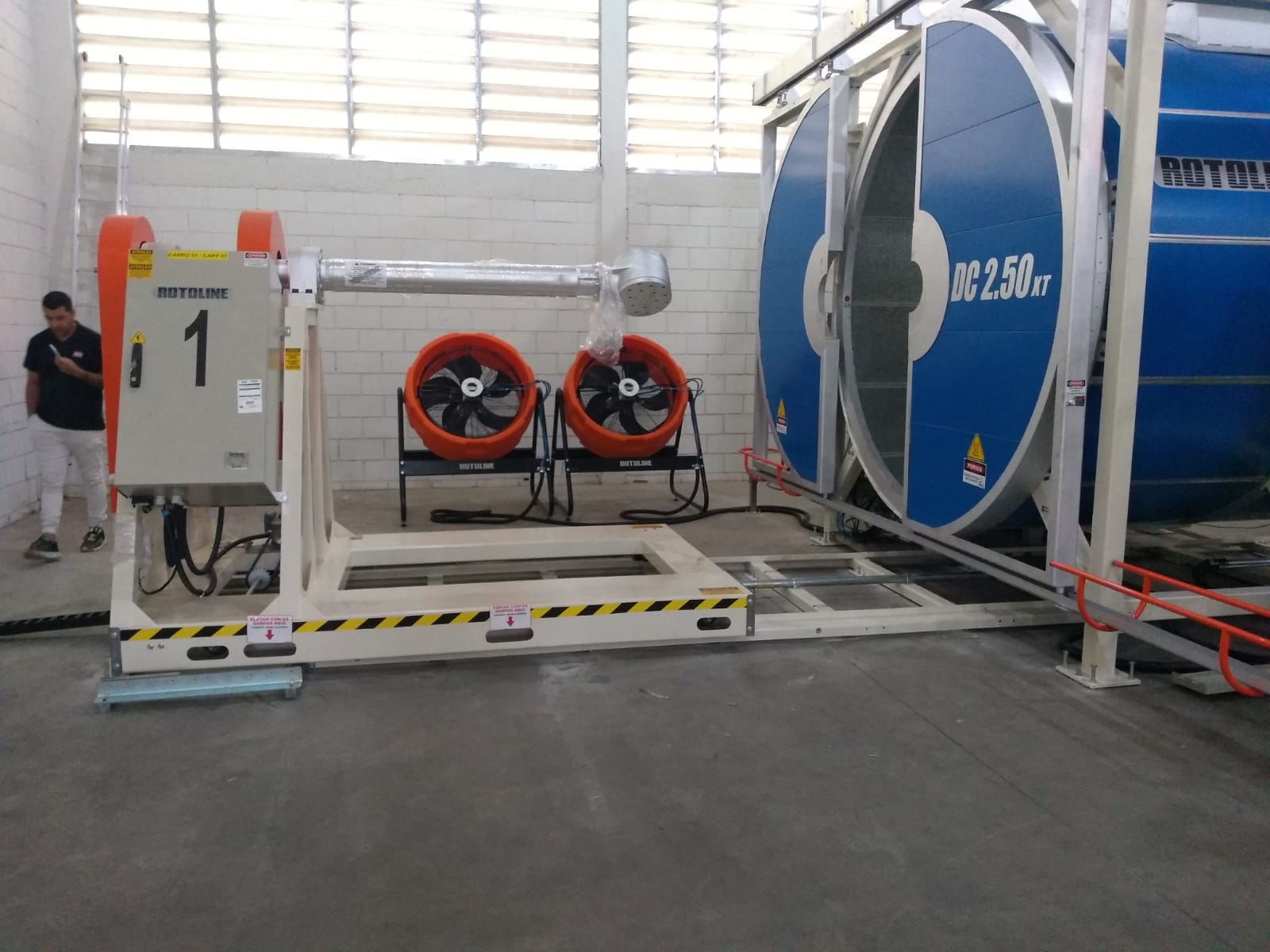

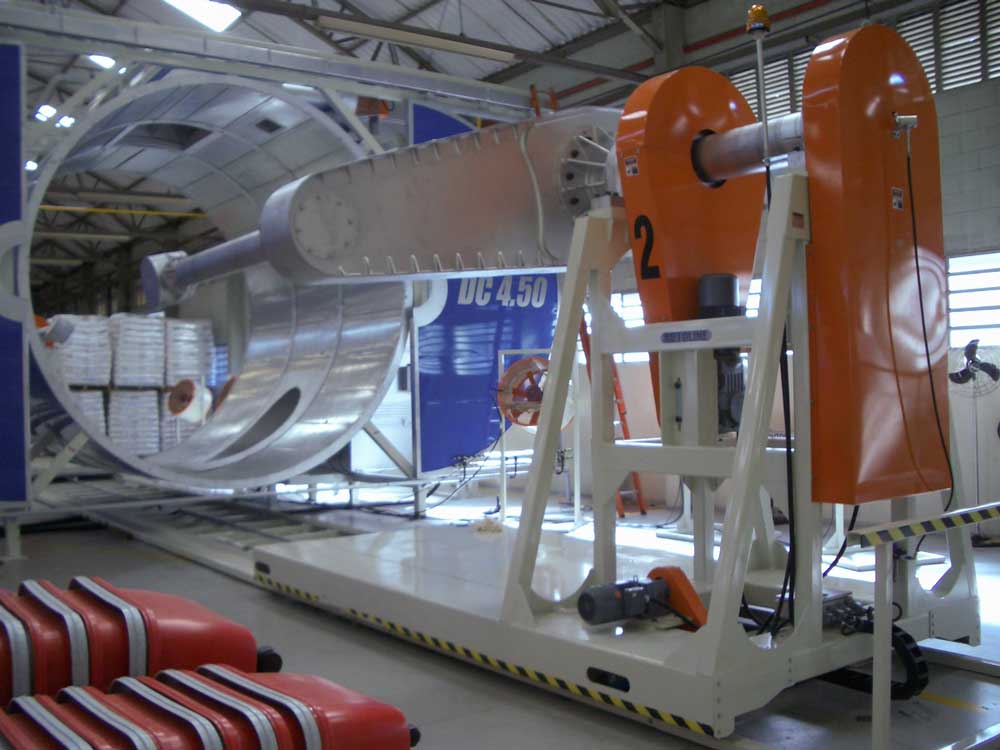

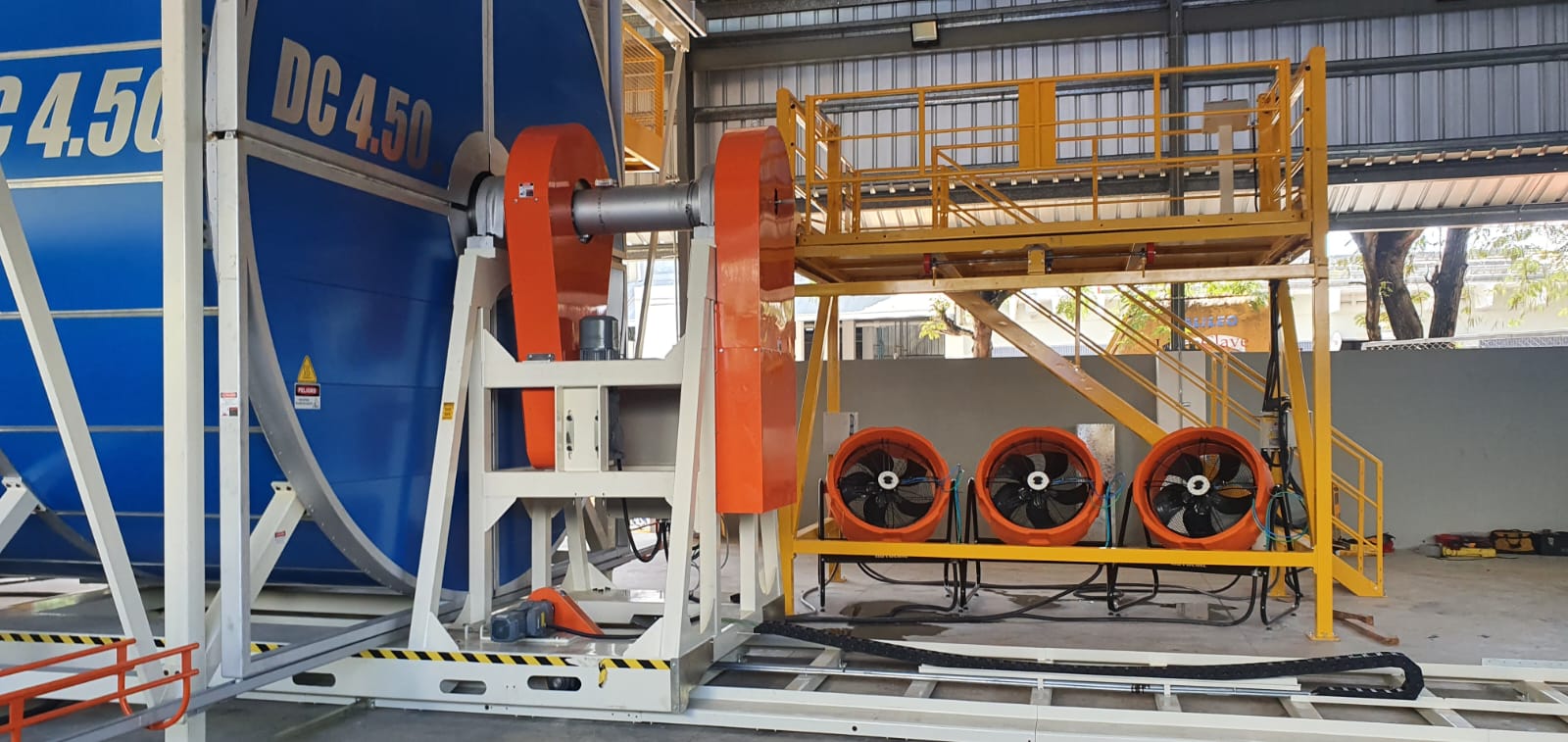

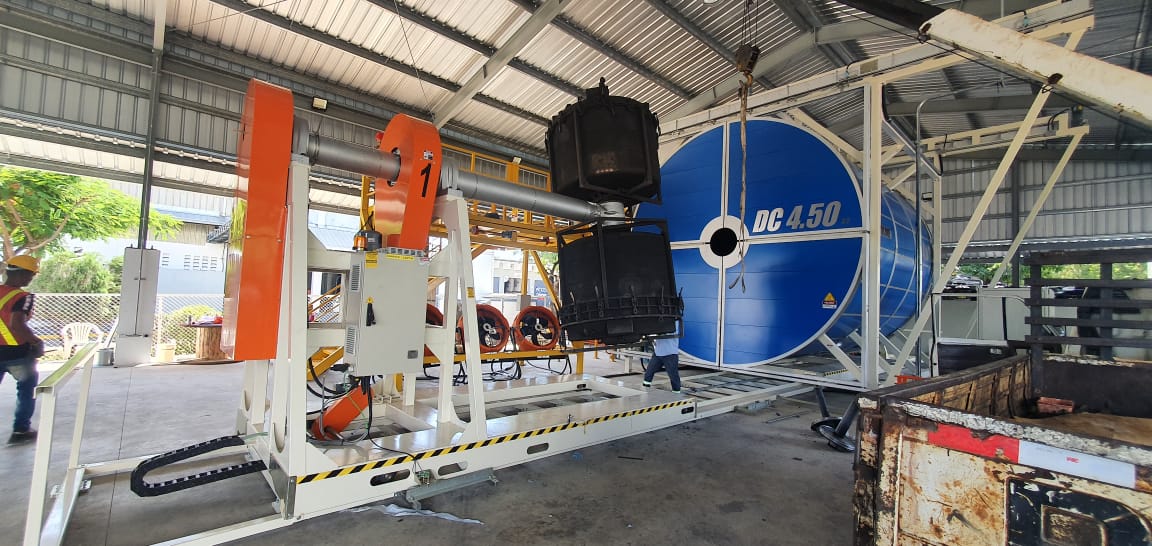

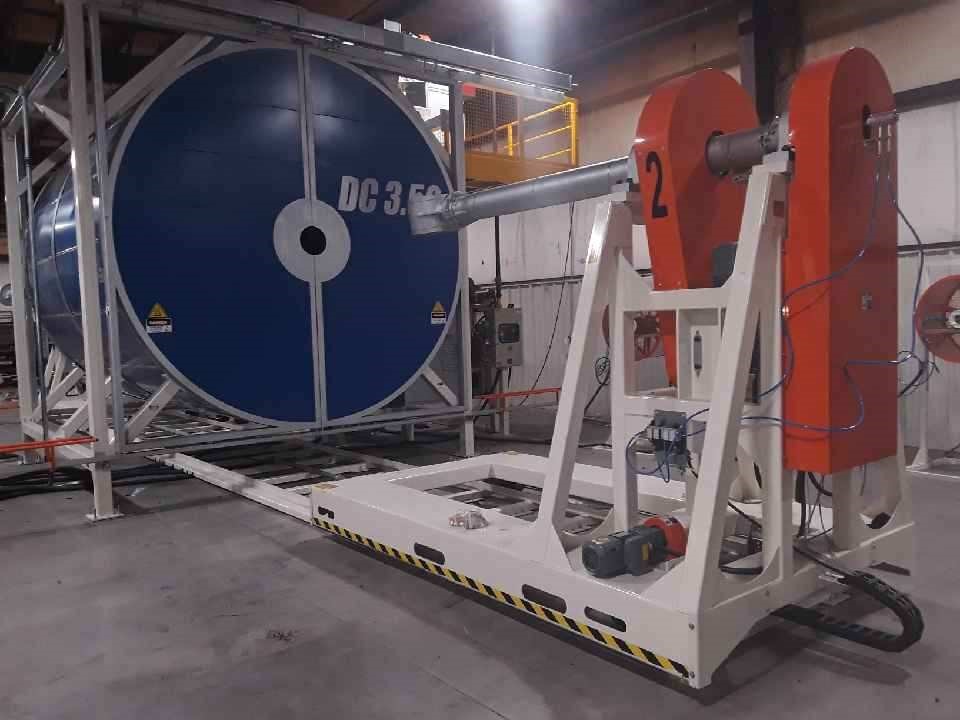

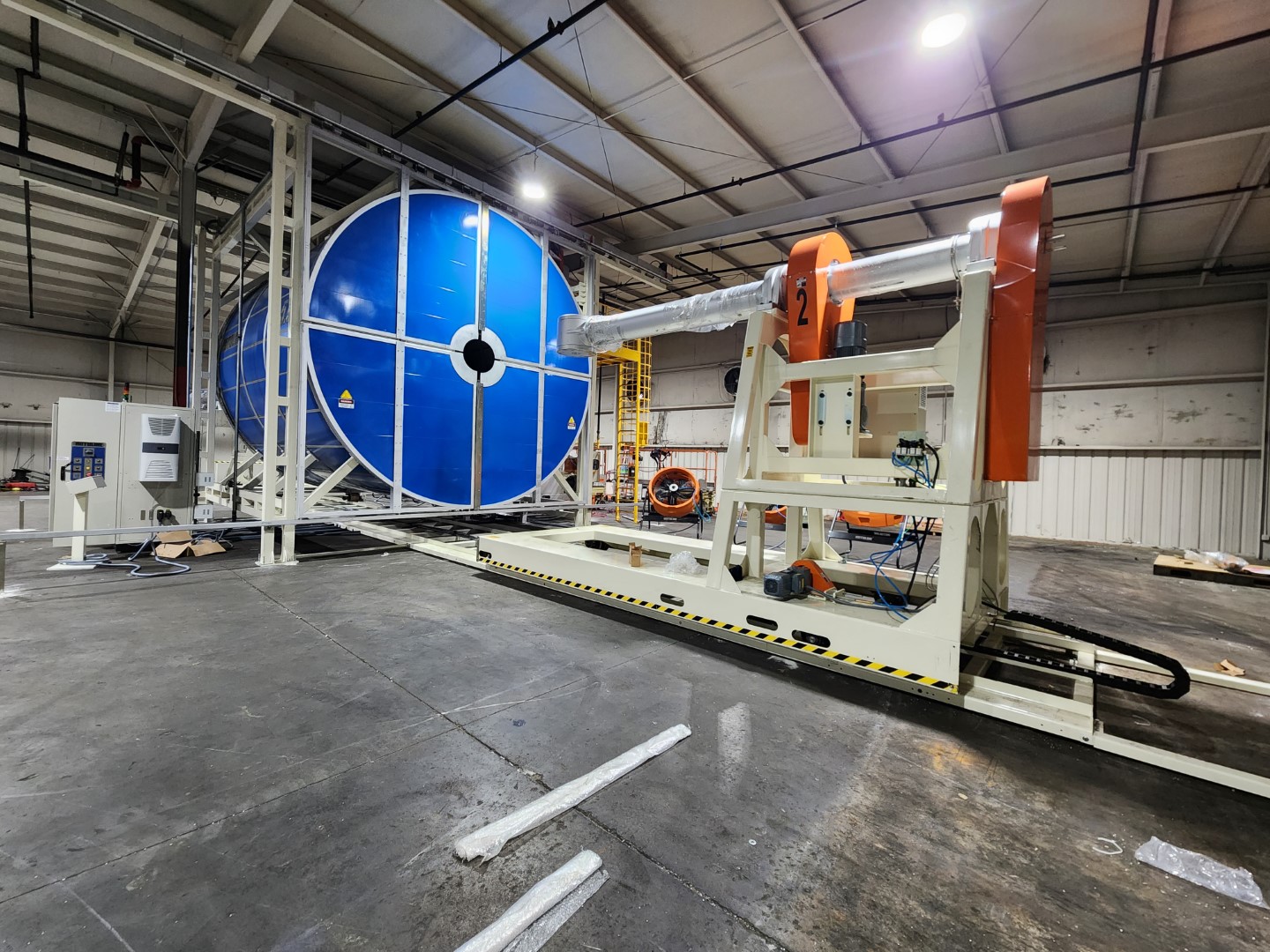

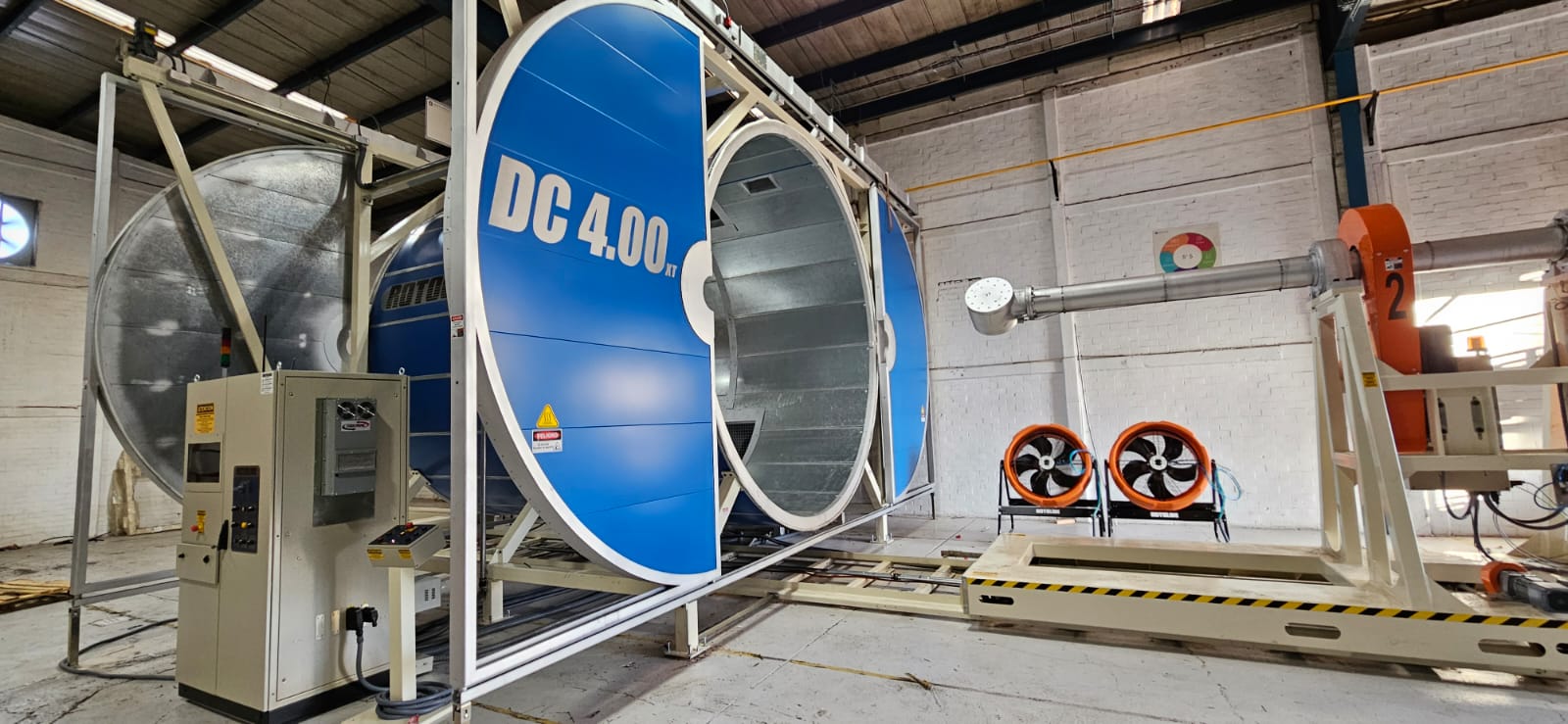

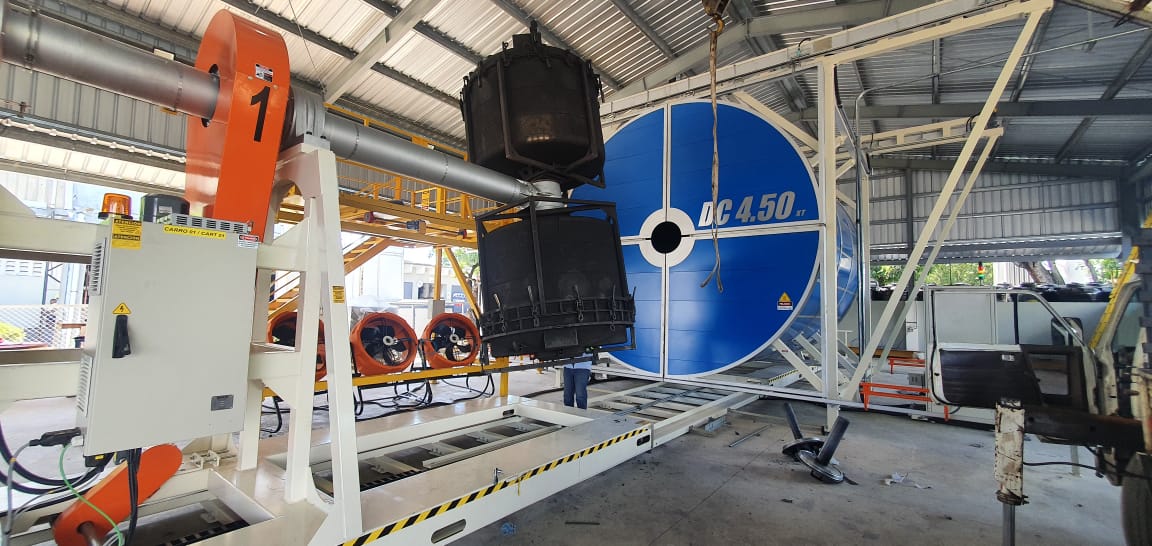

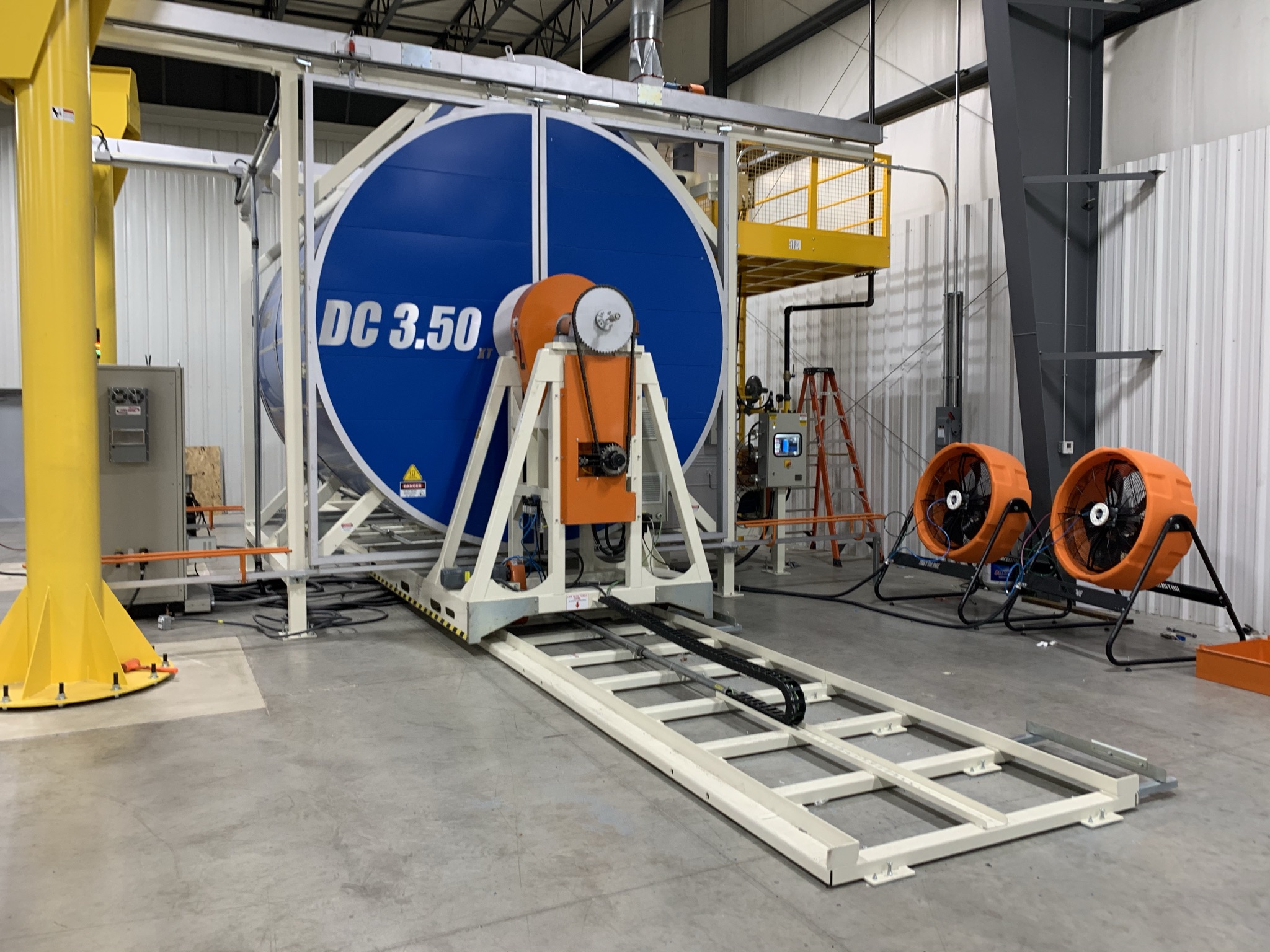

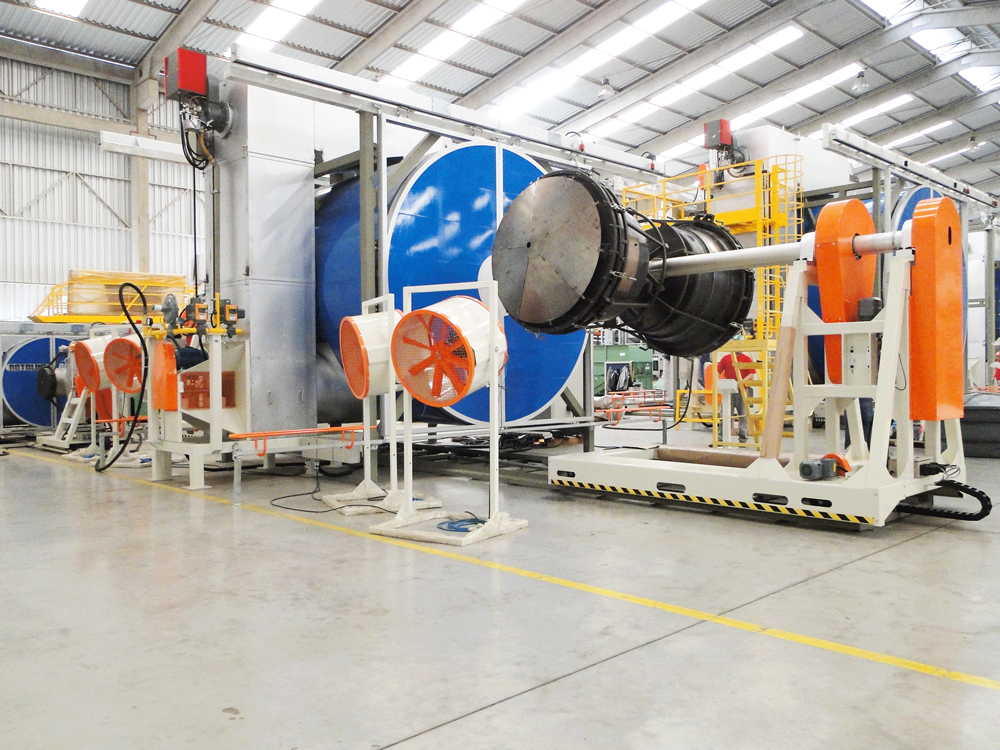

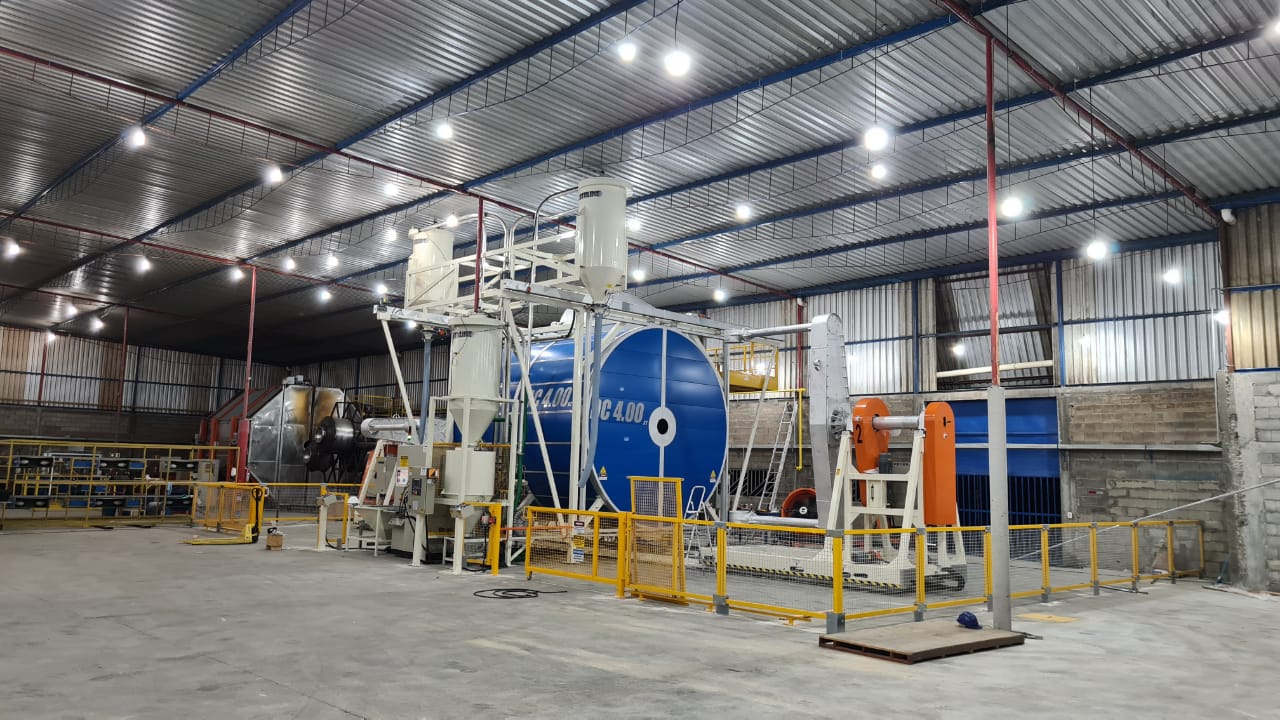

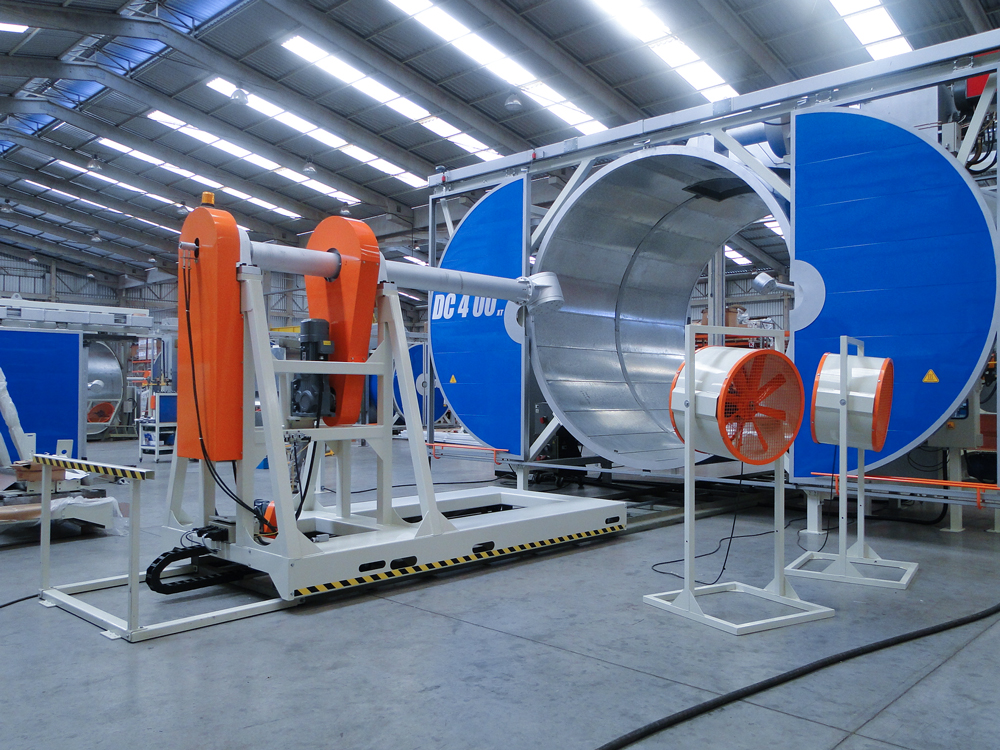

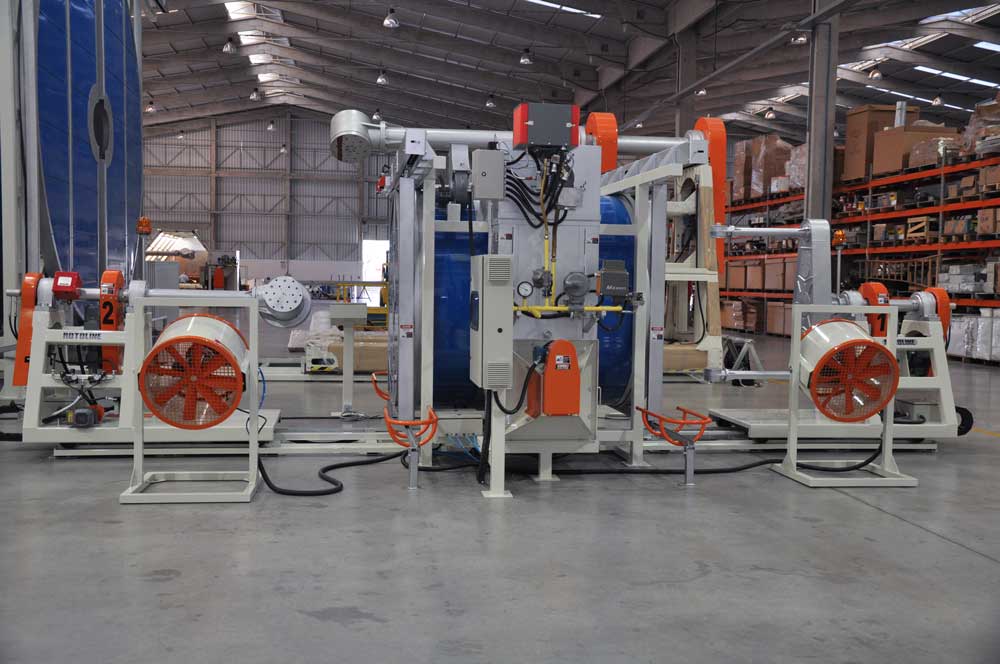

The Shuttle machine has 2 carts that can be equipped with a straight arm or an "C" offset arm, both build with a reinforced structure, heat treated to release the steel stress.
