ROTATIONAL MOLDING MACHINE

TQ50 DC

100% automatic
for closed tanks

IDEAL FOR THE PRODUCTION OF HIGH ADDED VALUE TANKS

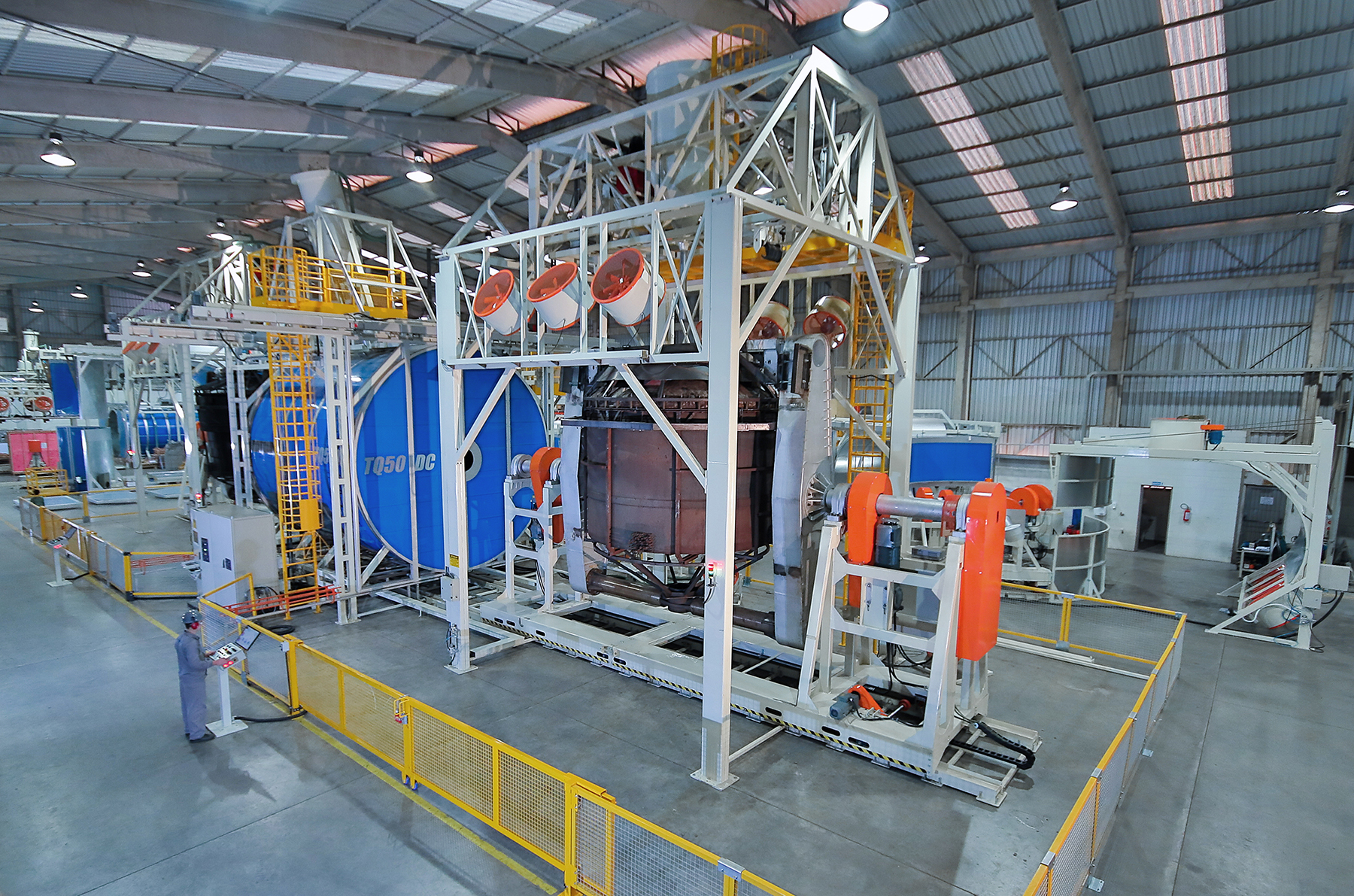

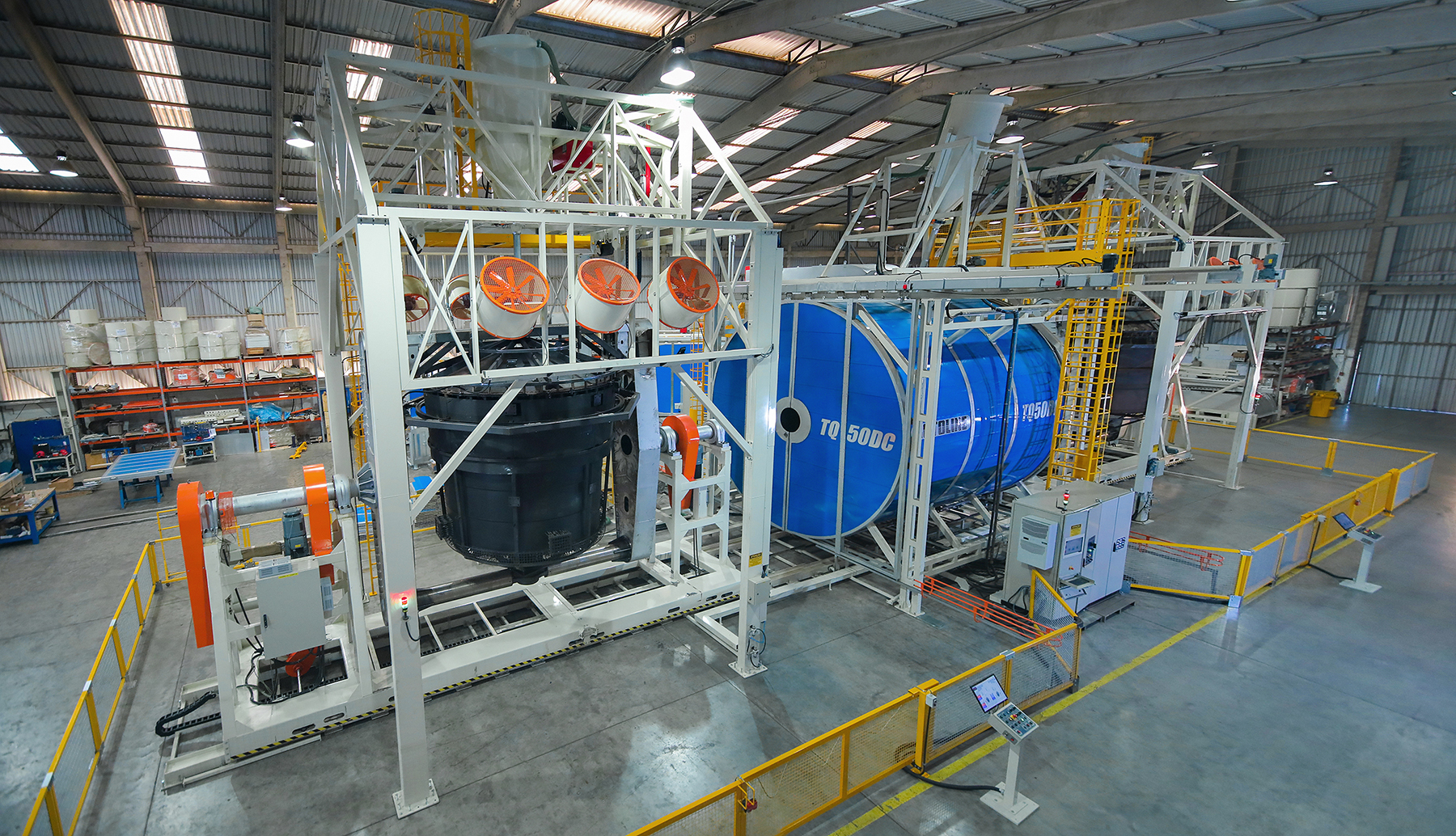

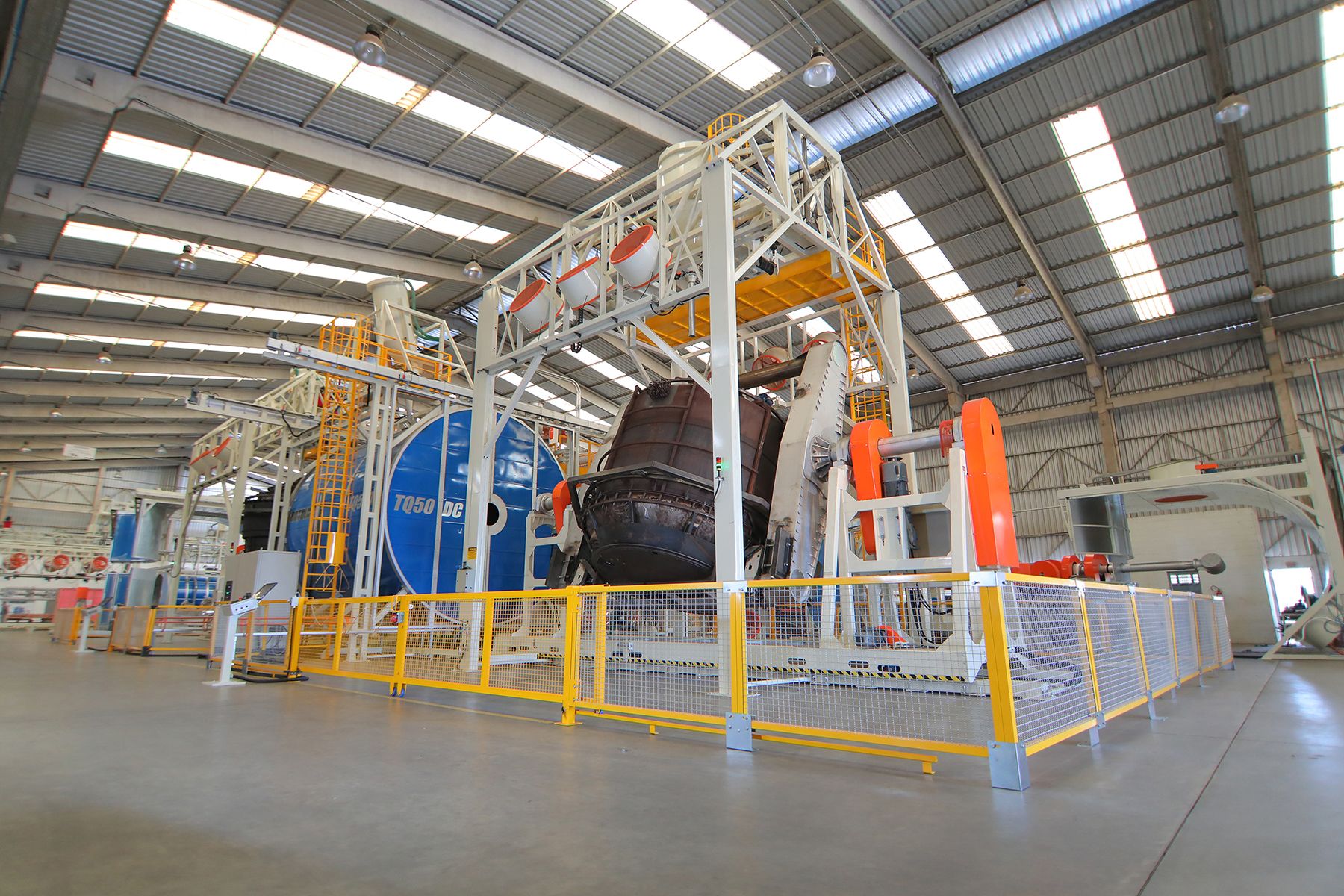

The TQ50DC is a 100% automatic rotational molding machine for closed tanks of up to 25,000 liters in a closed oven. Its differential is the possibility of producing tanks with higher added value in less time and at a lower cost.

One of its main features is the internal mold cooling system, developed by Rotoline, which significantly reduces the time of this stage of the cycle, increasing production efficiency.

The new machine was developed with a technology that values manufacturing economy, allowing for lower gas consumption and automatic weighing of the raw material, thus reducing material losses.

Automatization also reduces the number of operators, in addition to favoring repeatability in material weighing, thus eliminating weight variables.

The automatic material weighing system, without human interference, greater precision and agility, eliminates the need to lift the material to the mold and the weight variables.

CHECK
DETAILS

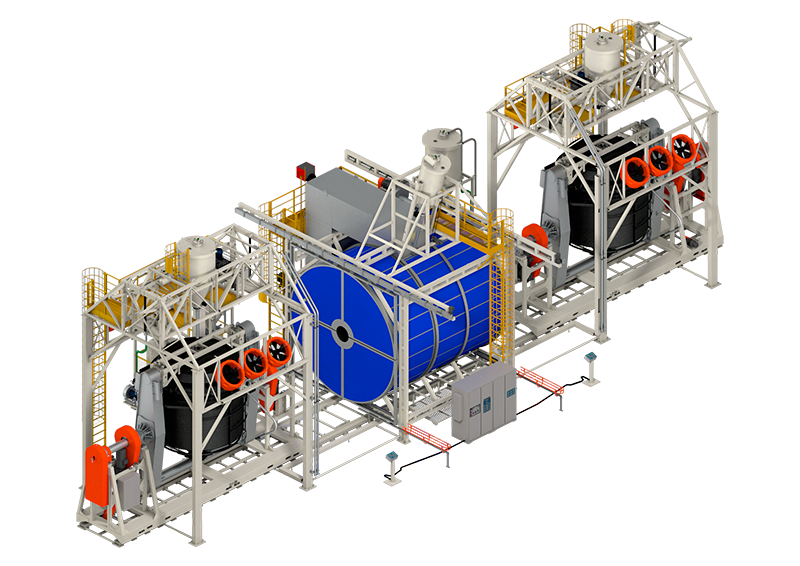

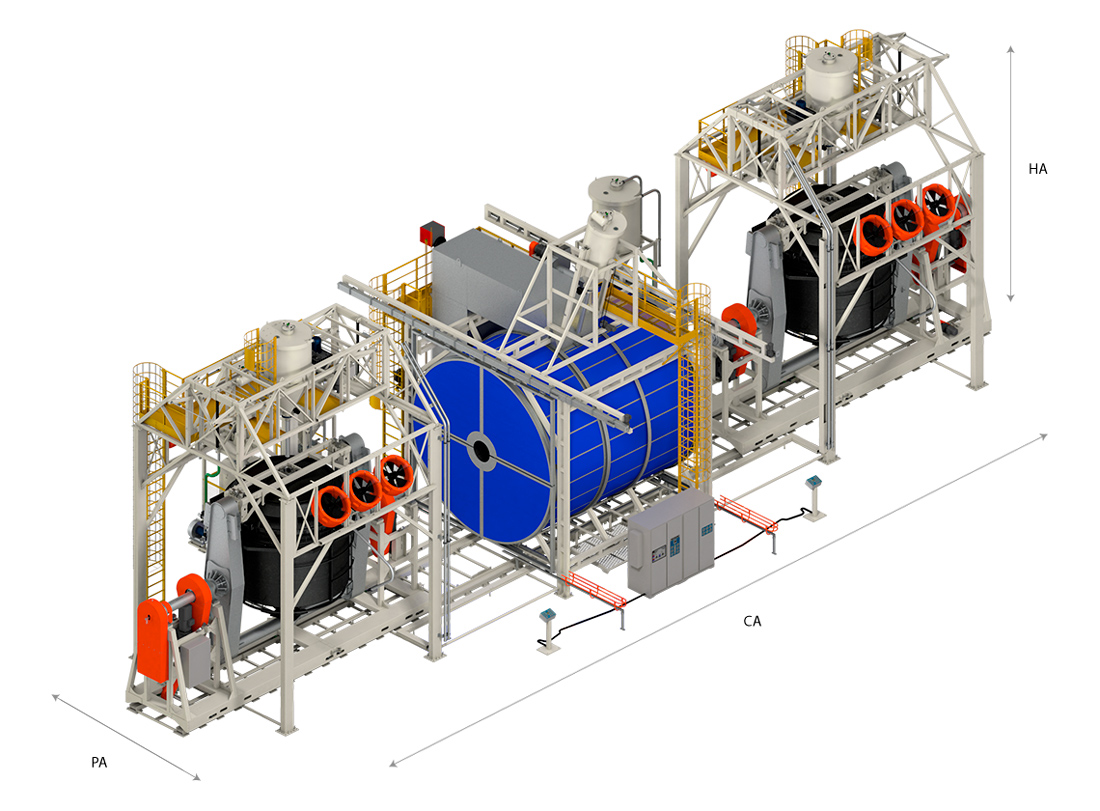

DIMENSIONS
OF THE MACHINE
TQ50DC

HA
10300 mm
405,5 in

CA
32000 mm
1259,8 in

PA
11200 mm
440,9 in

Ø OVEN
5000 mm
196,8 in

* Measurements are approximate and may be adjusted by the manufacturer.

WATCH
THE VIDEO

ROBUST
MECHANICS

The equipment is designed with a high capacity air recirculation system (equipped with start and speed control by variable frequency drive) and heating system with high efficiency for every cycle. The carts can be equipped with “Central” arm (STRAIGHT) or optional Offset arms ("C" or "L"). Gearmotors and variable frequency drives allows axis speed adjustment in any rotation direction.

INTEGRATED
WIRING

It is equipped with a Main Control Panel, used to program machine and production parameters, and there is also a motor control panel on each carriage. Two control podiums help this panel, providing the operator with three interface points for machine operation. All the panel connections with the field devices are made using quick connector plugs (plug and play), reducing installation time. It also has a complete electrical project, easy to interpret, enabling quick checks and agility in maintenance.

SMART
CONTROL

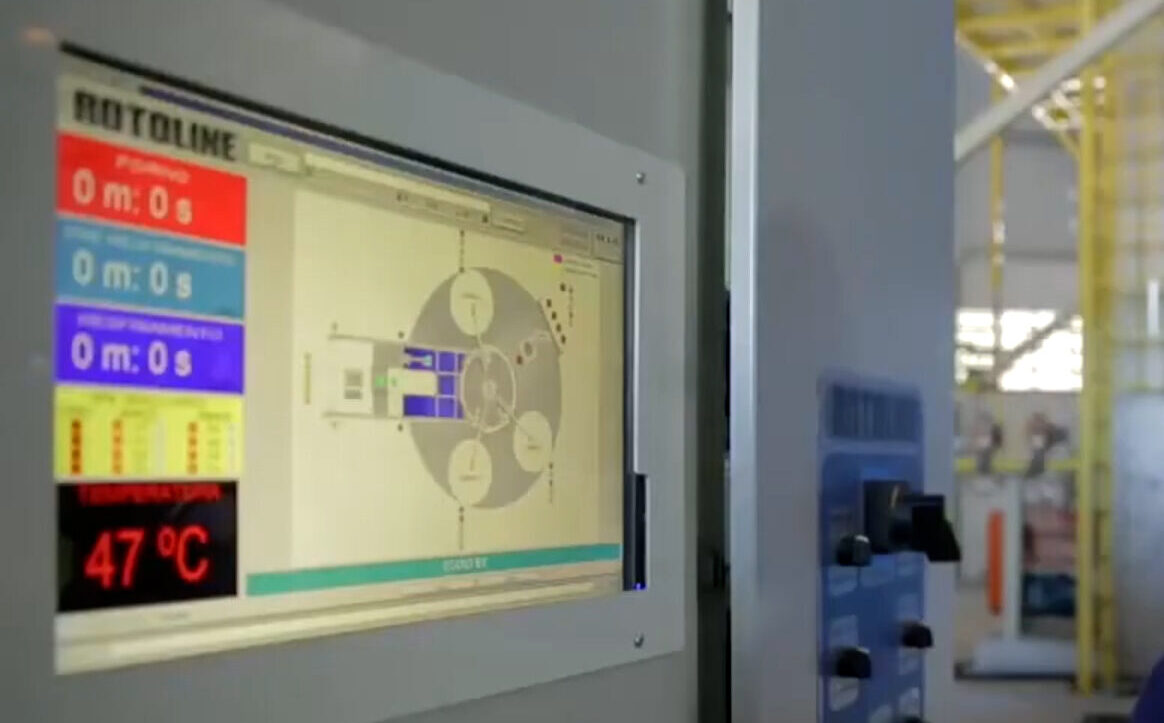

The CLP is loaded with a management software, which gathers information from multiple sensors installed in various points of the machine. The system records information about faults, diagnoses, production, recipes, among others, making it possible to better control and manage production. In addition to controlling itself, the system makes it possible to monitor the process and obtain status and production reports. The CLP is still linked to the ethernet network with all the Frequency Inverters, enabling a quick verification and adjustment of its parameters, even remotely, as well as providing the operator with much more information about the process.

Rotoline, with the aim of constant technical improvement, reserves the right to make any changes to its products without prior notice.
